Android Head Unit No Sound: Causes & Fixes

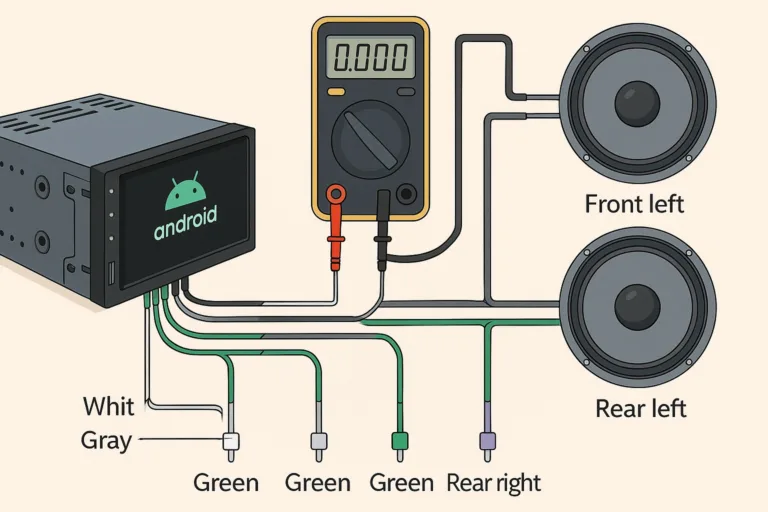

Android Head Unit No Sound: How to Check Your Wiring and Fix It Installing a universal Android head unit in pretty much any car looks simple at first glance. The ISO harness is there. Power is there. The speakers are there. On paper, everything needed is already in place. So what happens when the unit powers up perfectly and no sound comes out at all? The screen works. The menus respond. Even the radio plays. But the speakers stay completely silent. If this has happened to you, here's exactly why it occurs and how to fix it properly, like a professional, instead of guessing at random. The Most Common Cause: A Speaker Wire Short Circuit One of the most frequent situations is a short circuit on a single pair of speaker wires. The connections look right: white to white/black, or green to green/black, for instance. But on one of those pairs, the positive and negative wires are touching each other. Even more commonly, one of the wires is accidentally touching the car's metal chassis. When this happens, the head unit's internal amplifier automatically enters protection mode. Sound cuts out completely, on every channel at once, not just on the shorted speaker. ℹ️ Technical Note: This protection mode is an intentional safety mechanism, not a malfunction. The internal amplifier detects the short circuit and shuts down the audio output entirely, preventing damage to the amplifier's output stage. The unit is essentially defending itself against a wiring mistake. How to Check for a Short on One of the Speakers A multimeter and a bit of patience are all that's needed. Disconnect the head unit completely before testing, and check each pair of speaker wires individually. Testing Steps Place one multimeter probe on the "+" wire of the pair being tested. Place the other probe on the "–" wire of that same pair. If the multimeter beeps continuously (continuity), the two wires may be shorted together. Check separately whether either wire is touching the car's chassis — no speaker wire should show continuity to ground. If a problem turns up at any of these steps, properly insulate the point of contact, redo the connection, or replace the speaker entirely if the wire itself is damaged beyond repair. ⚠️ WARNING: Never reconnect the head unit to a wire pair suspected of having a short circuit, even just for a quick test. Doing so risks the amplifier repeatedly locking into protection mode, or in more severe cases, damaging the audio output stage permanently. The Head Unit Works on the Bench but Not in the Car This is another clear sign that the problem isn't the unit itself, but the car's specific wiring. This situation often shows up after a car's original factory audio unit, which used an external amplifier, gets replaced. In these cases, the wires coming out of the original ISO harness don't lead directly to the speakers anymore. They were originally designed to pass through the external amplifier first, not go straight to the speaker terminals. The fix: run new wires directly from the Android head unit's speaker outputs to each speaker, bypassing the old wiring meant for the amplifier entirely. It's a simple, reliable, and completely effective solution that removes any ambiguity about the car's original electrical layout. Symptom Likely Cause Fix No sound at all on any speaker Speaker wire short circuit Multimeter check, isolate wire Works on bench, not in car Wiring routed for external amp Run new wires to speakers Powers up, sound cuts out intermittently Amplifier stuck in thermal protection Full wiring inspection No sound, external amp present AMP wire not connected Connect AMP OUT wire Standard Speaker Wire Colors for Universal Android Units Knowing the standard color code saves significant time during any install or troubleshooting session: White / White with black → front left speaker Grey / Grey with black → front right speaker Green / Green with black → rear left speaker Purple / Purple with black → rear right speaker The general rule holds across most units: black is always negative ("–"), and the plain, solid color is positive ("+"). ℹ️ Technical Note: While this color code is considered industry standard for universal Android head units, some brands or older models may use slightly different conventions. Testing with a multimeter remains the safest way to confirm wiring, especially if the unit didn't come with a wiring diagram in the box. Don't Forget the AMP (Remote) Wire If You Have an External Amplifier If the car's audio system includes an external amplifier, that amplifier needs 12V to switch on and function correctly. Make sure the head unit's AMP OUT wire, usually blue, is properly connected to the amplifier's remote turn-on input. Without this connection, the amplifier stays completely inactive, no matter how correctly the rest of the wiring is done. ⚠️ WARNING: An external amplifier that isn't activated through the AMP OUT wire can look, at first glance, exactly like a speaker short circuit — complete silence from the speakers. The key difference: here, the cause is a missing turn-on signal, not an actual electrical fault. How to Fully Diagnose the System Before Replacing Parts Many of the symptoms described above can overlap at first glance. No sound could mean a short circuit, incorrect wiring, or a missing AMP wire, all producing the exact same result from the user's perspective. The real difference only shows up through systematic, wire-by-wire checking, not by randomly swapping components. For more complex electrical issues in the car that might indirectly affect the audio system's power supply, a diagnostic tool like Foxwell NT301 can confirm the vehicle's overall electrical system status, ruling out a broader power or grounding issue affecting the whole car. Conclusion An Android head unit with no sound isn't, in the vast majority of cases, a broken unit. It's actually a unit correctly protecting itself against a wiring mistake. Leftover wiring from a previous installation, wires accidentally touching the chassis, or weak connections are the main culprits in these situations. With a multimeter, some attention to detail, and the correct color-code diagram, any enthusiast can identify and fix the problem alone, ending up with a fully functional, complete audio experience in the car.
