ECU Explained – How It Works & Why It Fails

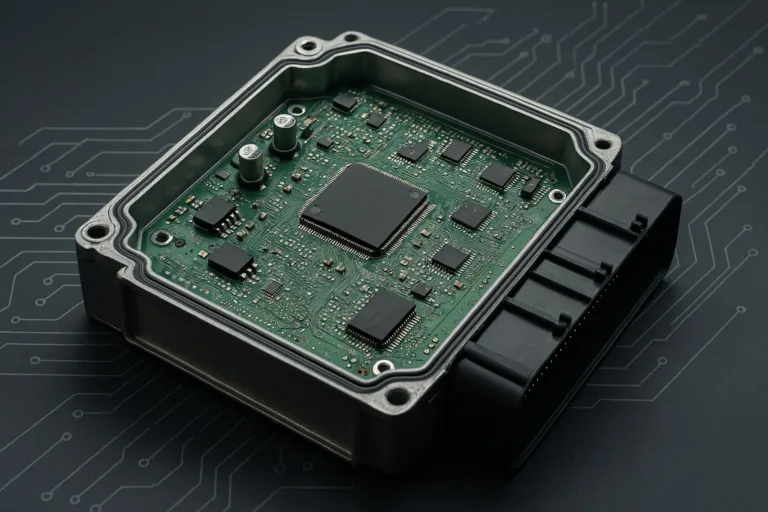

ECU Explained – How It Works & Why It Fails [caption id="attachment_18034" align="aligncenter" width="1536"] ECU Explained – How It Works & Why It Fails[/caption] Modern gasoline and diesel engines are fully managed by complex electronic control systems, with the Engine Control Unit (ECU) at the heart of it all. This intelligent component constantly receives data from sensors (such as position, pressure, or RPM) and makes real-time decisions to control actuators like injectors, valves, or motors, based on your throttle input. Let’s dive into what the ECU really does, how it processes data, and why it may trigger OBD fault codes. ⚙️ What Is an ECU and How Does It Work? Known as ECU, ECM, EMS, or PCM in English, the engine control unit is essentially the brain of your vehicle. It determines how the engine should run based on thousands of signals every second. Its main roles include: Monitoring engine conditions via sensors Processing data through microcontrollers Controlling actuators like fuel injectors and valves Ensuring optimal engine performance and low emissions 🔩 ECU Types – DCM3.7, EMS3, MT62.1 Each vehicle uses a specific ECU depending on the engine type and system complexity: 🛠️ DCM3.7 [caption id="attachment_18030" align="alignnone" width="324"] DCM[/caption] Designed to operate under harsh mechanical and thermal stress: Operating range: -40 to 120°C Resistant to water, oil, dust, and vibrations Must perform under electromagnetic disturbances and voltage drops 🔧 EMS3 [caption id="attachment_18031" align="alignnone" width="321"] EMS[/caption] Constructed from: A base PCB (circuit board) A robust plastic or metallic housing Electrical connector receiving sensor input & sending actuator commands 🧰 MT62.1 [caption id="attachment_18032" align="alignnone" width="369"] MT[/caption] Used in modern engines with over 100 pins in the connector. These handle: Sensor inputs Actuator commands Power supply CAN bus communication 🧠 Internal Components of an ECU The ECU is made up of several key parts: 🔋 Battery power input module 📥 Input signal processing block 💻 Central CPU (Microcontroller) 💾 Flash EEPROM memory 🔄 Monitoring system 📤 Actuator control amplifier stage 🔎 How Signal Processing Works The microcontroller inside the ECU is responsible for all math, logic, and control functions. It includes: Flash EEPROMStores both the engine control algorithm and calibration data. Rewritable in blocks, not individual bytes. RAMTemporary memory for runtime variables. Data is lost when engine power is off. A/D ConverterConverts analog signals (like accelerator position or turbo pressure) into digital format. Digital InputsHall effect or inductive sensors (like crankshaft speed) send 0-5V signals that don’t need conversion. CAN Bus ModuleEnables communication with other vehicle modules (ABS, BCM, TCU) and diagnostic tools (scanners, dealer software). ⚠️ ECU Fault Codes (OBD Errors) Common reasons for ECU-related error codes include: Low or unstable battery voltage Loose or dirty connector pins Internal component failure (may require ECU replacement) 🚘 Final Thoughts The Engine Control Unit (ECU) is one of the most critical components in modern cars. Whether it’s gasoline or diesel, your car’s performance, economy, and emissions all depend on this silent brain. Understanding how it works gives you a better chance at diagnosing issues — or at least understanding what your mechanic is talking about. Source
