BIOS Beep Codes: Complete Guide for PC Hardware Diagnosis

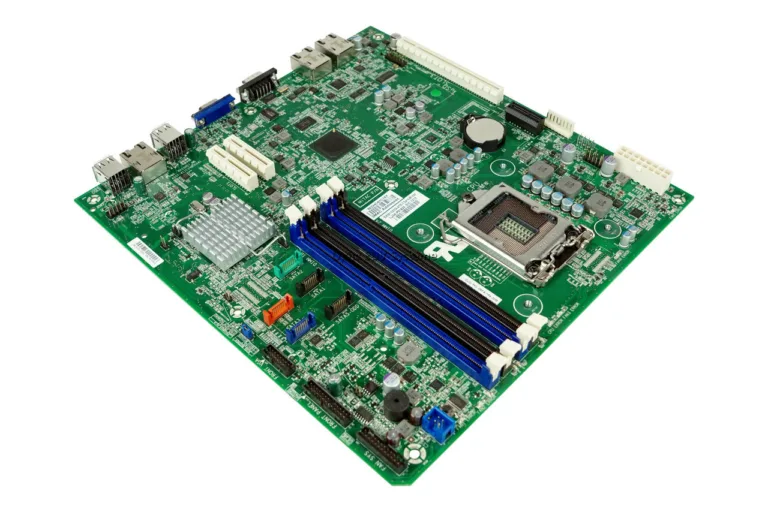

What Are BIOS Beep Codes BIOS beep codes are audio signals generated by the motherboard during the system startup process, specifically during POST (Power-On Self Test). These signals are used to indicate hardware errors when the system cannot display information on the monitor. When a critical component fails or is not detected, the BIOS uses a sequence of beeps to communicate the issue. This is especially useful when there is no video output, making traditional on-screen error messages unavailable. Each BIOS manufacturer uses its own beep code system, which means interpretation depends on the BIOS type installed on the motherboard. The most common BIOS types are: AMI (American Megatrends) Award Phoenix Understanding these codes is essential for fast and accurate hardware troubleshooting. https://diagnozabam.ro/sfaturi/blog/bios-corrupted-recovery-and-fix-guide/ Why Beep Codes Occur During Startup During the POST process, the system checks all essential hardware components required for booting. If a problem is detected, the BIOS interrupts the startup sequence and emits a beep code. Common causes include: faulty or improperly installed RAM GPU (graphics card) issues CPU malfunction or incompatibility motherboard failure corrupted BIOS firmware CMOS battery problems In many cases, beep codes are the only diagnostic method available when the system fails to boot properly. AMI BIOS Beep Codes AMI BIOS is one of the most widely used systems and provides a clear beep code structure based on the number of beeps. Full AMI BIOS Beep Code List 1 beep: RAM refresh failure 2 beeps: RAM parity error 3 beeps: base 64 KB memory failure 4 beeps: system timer failure or RAM issue 5 beeps: CPU error 6 beeps: keyboard controller (Gate A20) error 7 beeps: general motherboard or CPU exception 8 beeps: video memory or GPU error 9 beeps: corrupted BIOS ROM 10 beeps: CMOS read/write error 11 beeps: cache memory error Practical Interpretation In real-world diagnostics, the most common AMI codes are: 3 beeps → defective RAM 4 beeps → RAM or motherboard issue 8 beeps → GPU failure Memory-related issues are by far the most frequent and should always be checked first. https://diagnozabam.ro/sfaturi/ro/blog/coduri-beep-bios-ghid-complet-pentru-diagnoza-pc/ Award BIOS Beep Codes Award BIOS uses a combination of short and long beeps rather than counting sequences. Common Award BIOS Codes 1 short beep: system OK continuous beeping: RAM problem long continuous beep: RAM not detected 1 long + 2 short beeps: GPU error 1 long + 3 short beeps: video memory issue rapid continuous beeps: power supply or motherboard issue Practical Interpretation Continuous beeping is typically associated with RAM problems. This could mean: RAM not installed correctly incompatible memory defective module The combination of 1 long and 2 short beeps is a classic indicator of GPU failure. Phoenix BIOS Beep Codes Phoenix BIOS uses a more advanced system based on beep sequences separated into groups (for example: 1-2-2). Common Phoenix BIOS Codes General System Errors 1-1-3: CMOS read/write failure 1-1-4: BIOS ROM corruption 1-2-1: system timer failure 1-2-2: DMA controller failure 1-2-3: DMA register error Memory Errors 1-3-1: RAM failure 1-3-3: RAM failure 1-3-4: severe RAM error Video Errors 1-4-1: GPU failure 1-4-2: GPU failure Practical Interpretation Phoenix BIOS codes are more precise but less commonly encountered. Most codes starting with 1-3 indicate RAM-related issues. Most Common Beep Codes in Practice In real-world troubleshooting, a few beep patterns account for most issues: continuous beep → RAM problem 3 beeps → RAM failure 4 beeps → RAM or motherboard issue 1 long + 2 short → GPU problem no beep → serious hardware failure (PSU, motherboard, or CPU) These patterns cover the majority of cases encountered in PC repair. How to Diagnose the Problem Step by Step A structured diagnostic process can quickly identify the faulty component. 1. Check the RAM Remove all RAM modules and clean the contacts. Test each module individually in different slots. This is the most effective first step. 2. Check the Graphics Card Ensure the GPU is properly seated. If possible, test with another graphics card or switch to integrated graphics. 3. Reset the BIOS Clear CMOS by removing the battery for a few minutes or using the motherboard jumper. This eliminates configuration-related errors. 4. Minimal Hardware Boot Start the system with only essential components: motherboard CPU one RAM module power supply Disconnect all drives and peripherals. When the Problem Is More Serious If the system produces no beep and no display, the issue may involve: power supply failure motherboard damage CPU malfunction In such cases, component testing in another system is required. Preventing Hardware Errors Many beep code issues can be prevented through proper maintenance: regular cleaning to remove dust avoiding humidity exposure ensuring stable power supply using high-quality components Dust buildup and poor electrical contact are among the most common causes of RAM and GPU issues. Conclusion BIOS beep codes are a fundamental diagnostic tool for identifying hardware issues when a system fails to boot. Whether using AMI, Award, or Phoenix BIOS, understanding these codes allows for faster troubleshooting and more efficient repairs. In most cases, the issue is related to RAM or the graphics card, making these components the first priority during diagnosis. FAQ – BIOS Beep Codes What do 4 beeps mean on startup Typically indicates a RAM or motherboard issue, depending on BIOS type. What does a continuous beep mean Usually a RAM failure or improperly installed memory. Can a PC run with beep errors Some errors allow limited operation, but critical ones will prevent booting. How can I identify my BIOS type Check the motherboard model or access BIOS setup during startup (DEL or F2). https://diagnozabam.ro/sfaturi/blog/ssd-not-detected-in-bios-complete-fix-guide/ https://diagnozabam.ro/sfaturi/blog/gpu-fans-spin-but-no-display-complete-fix-guide/ https://diagnozabam.ro/sfaturi/blog/pc-turns-on-then-off-instantly-causes-and-fix-guide/ https://diagnozabam.ro/sfaturi/blog/ram-not-detected-causes-and-how-to-fix-it/ https://diagnozabam.ro/sfaturi/blog/pc-turns-on-but-no-display-complete-fix-guide/ https://diagnozabam.ro/sfaturi/blog/pc-beeping-continuously-causes-and-how-to-fix-it/
