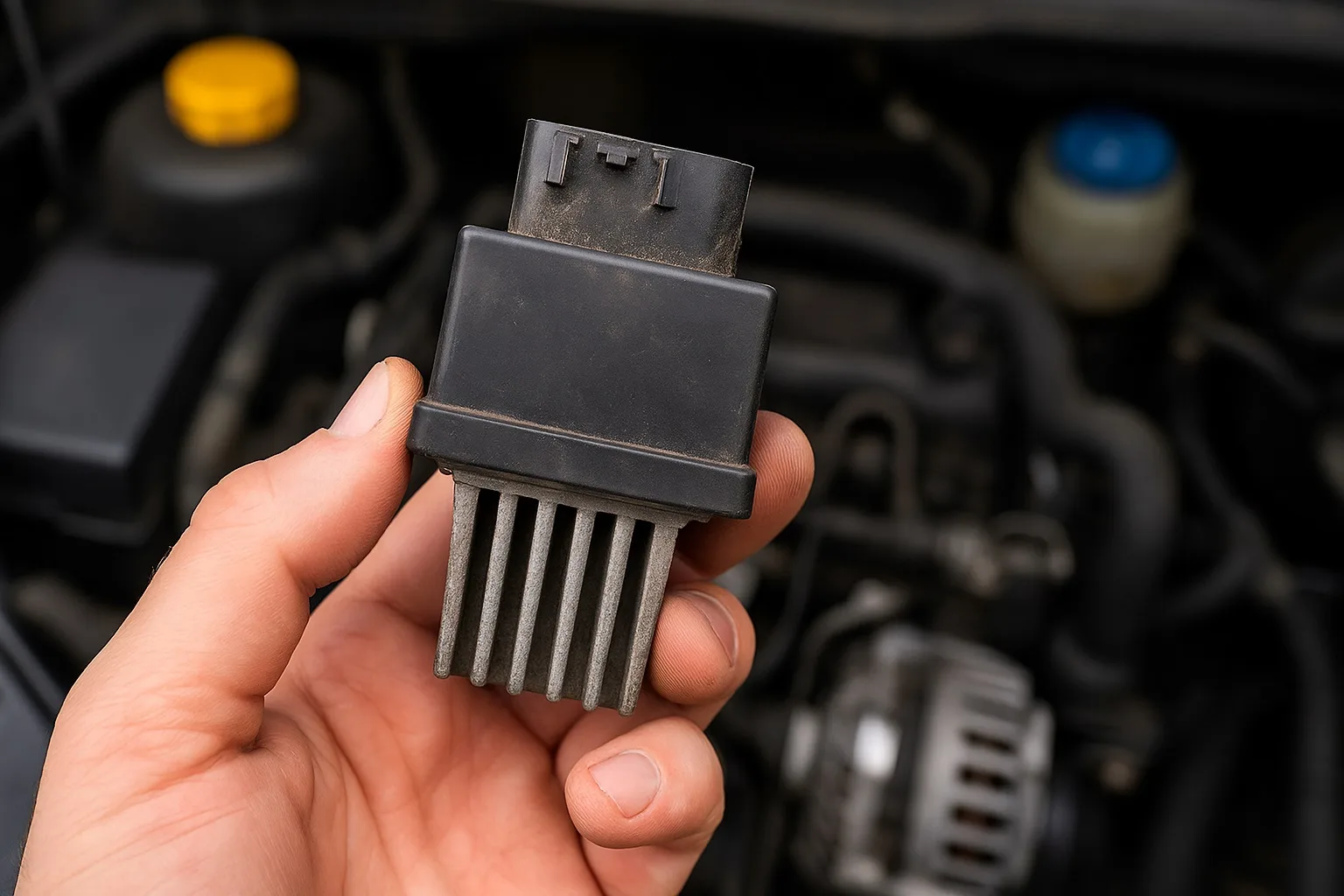

Glow Plug Relay Burned? Fast Signs & Test!

A glow plug relay burned situation is more common than most diesel owners think. If you’re dealing with hard cold starts — even in mild weather — don’t immediately blame the glow plugs themselves. In many real-world cases, the culprit is the glow plug relay, the electronic component that controls voltage delivery to the plugs.

I’ve seen diagnostic cases where all glow plugs were brand new, resistance perfectly within spec — yet the engine struggled every morning. The glow plug relay burned internally. No fault codes stored in the ECU. Just silent failure.

Let’s break it down clearly and practically.

What Does the Glow Plug Relay Actually Do?

In diesel engines, glow plugs help preheat the combustion chamber when the engine is cold. But they don’t operate on their own.

The glow plug relay:

• Receives a signal from the ECU

• Sends 12V (or higher, depending on system) to the glow plugs

• Keeps them powered for a few seconds before and sometimes after start

• Cuts power once combustion stabilizes

Without it, glow plugs never heat up — and cold combustion becomes inefficient or unstable.

If the glow plug relay burned, the system simply doesn’t deliver current.

🚨 Symptoms of a Burned Glow Plug Relay

A failing or burned glow plug relay often mimics bad glow plugs, but there are subtle differences.

1. Hard Cold Start (Even Above 10°C)

If the engine cranks longer than usual, especially in the morning, and improves once warm — suspect relay failure.

2. Rough Idle for First Few Seconds

Engine shakes, misfires lightly, then stabilizes quickly.

3. White Smoke on First Acceleration

Unburned diesel due to insufficient chamber preheating.

4. Glow Plug Warning Light Issues

• Light doesn’t turn on at all

• Light stays on longer than normal

• Light behaves inconsistently

5. No Clicking Sound

Most relays produce 1–2 audible clicks when ignition is switched on.
If silent — and you’re sure you’re listening in the right area — it’s suspicious.

🔧 How to Test a Burned Glow Plug Relay

Testing is simple and doesn’t require advanced diagnostic tools.

🧪 Method 1 – Audible Test

1. Turn ignition ON (engine off)

2. Listen near the relay location (usually near battery or fuse box)

3. You should hear 1–2 clicks

No click? The glow plug relay burned is very likely.

🧪 Method 2 – Multimeter Test

This is more accurate.

1. Disconnect the relay

2. Turn ignition ON

3. Measure voltage on output pins toward glow plugs

You should see 12V for about 3–5 seconds.

If there’s:

• No voltage → relay failure

• Constant voltage → internal short

• No continuity between control pins → burned internal circuit

🧪 Method 3 – Bulb Load Test

A practical workshop trick:

1. Connect an H4 bulb in parallel with one glow plug

2. Turn ignition ON

If the bulb does NOT light up at all → the glow plug relay burned and is not supplying current.

This test confirms real current delivery under load — not just voltage presence.

🔍 Where Is the Glow Plug Relay Located?

It depends on the engine and brand.

Common Locations:

• Engine bay fuse box

• Near the battery

• Mounted on a metal bracket

• Under ECU protective cover

Popular Diesel Examples:

• Opel CDTI – Near ECU or battery side

• Renault dCi – On engine crossmember

• Volkswagen TDI – Under ECU cover or relay panel

Always verify exact positioning using service diagrams.

Why the ECU May Not Show Errors

Here’s something important:

A glow plug relay burned condition does NOT always trigger a fault code.

Why?

Because many ECUs only monitor glow plug circuit continuity, not actual current flow from the relay module. If the control side responds but power side fails internally, the ECU may think everything is fine.

This is why real electrical testing matters.

For deeper diesel diagnostic strategies, you can check technical guides at
https://diagnozabam.ro

Can You Repair a Burned Glow Plug Relay?

Short answer: Not worth it.

Modern relays are:

• Sealed

• Electronic (solid-state or integrated control boards)

• Resin encapsulated

Even if opened, repair reliability is questionable.

Replacement is the safe option.

💸 Cost of Replacement

Depending on vehicle model:

• Aftermarket relay: €15–50

• OEM relay: €40–120

In Romania, typical pricing ranges between 80 and 250 lei, depending on brand and engine.

Labor is minimal — usually 10–20 minutes.

What Happens If You Ignore It?

Driving with a burned glow plug relay may lead to:

• Increased starter wear

• Battery strain

• Excess fuel dilution in oil

• DPF clogging due to incomplete combustion

• Higher emissions

Cold-start efficiency is critical in modern diesel engines.

Final Verdict

A glow plug relay burned problem is simple, affordable, and often overlooked.

If your diesel engine:

• Starts hard when cold

• Shows no clear ECU codes

• Has new glow plugs

• Produces white smoke at start

The relay should be one of the first components you test.

It’s easy to check, inexpensive to replace, and essential for proper cold operation.

In diagnostics, I’ve learned one rule:
Always verify power delivery — not just component condition.

And when in doubt, test the relay before replacing expensive parts.
