Dashboard LED Replacement – Complete Step-by-Step Guide

Dashboard LED replacement has become one of the most popular DIY upgrades among car enthusiasts. Modern vehicles rely heavily on instrument cluster lighting, and factory LEDs often feel outdated or too dim.

This complete guide explains everything you need to know about dashboard LED replacement, from disassembly and LED selection to soldering, testing, and avoiding CANbus errors.

What is dashboard LED replacement

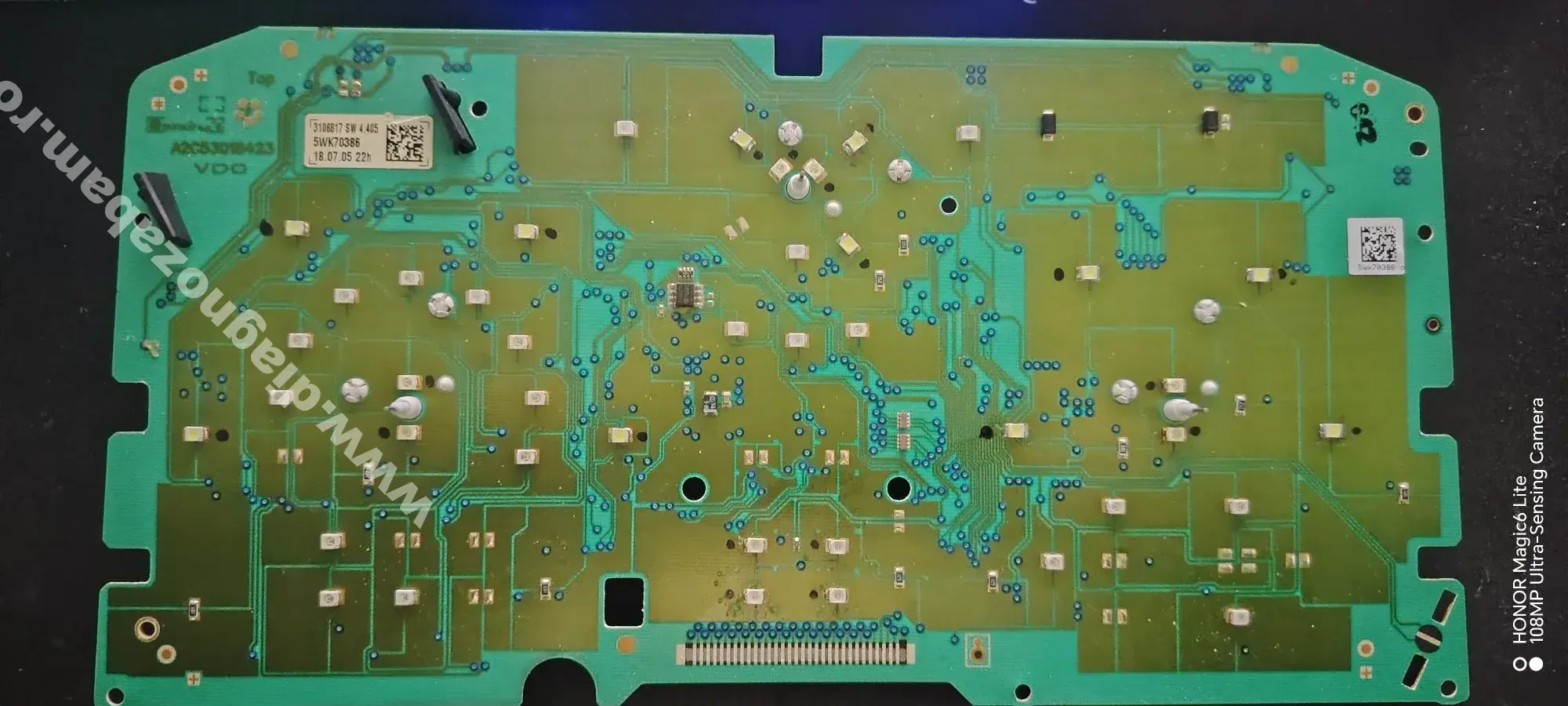

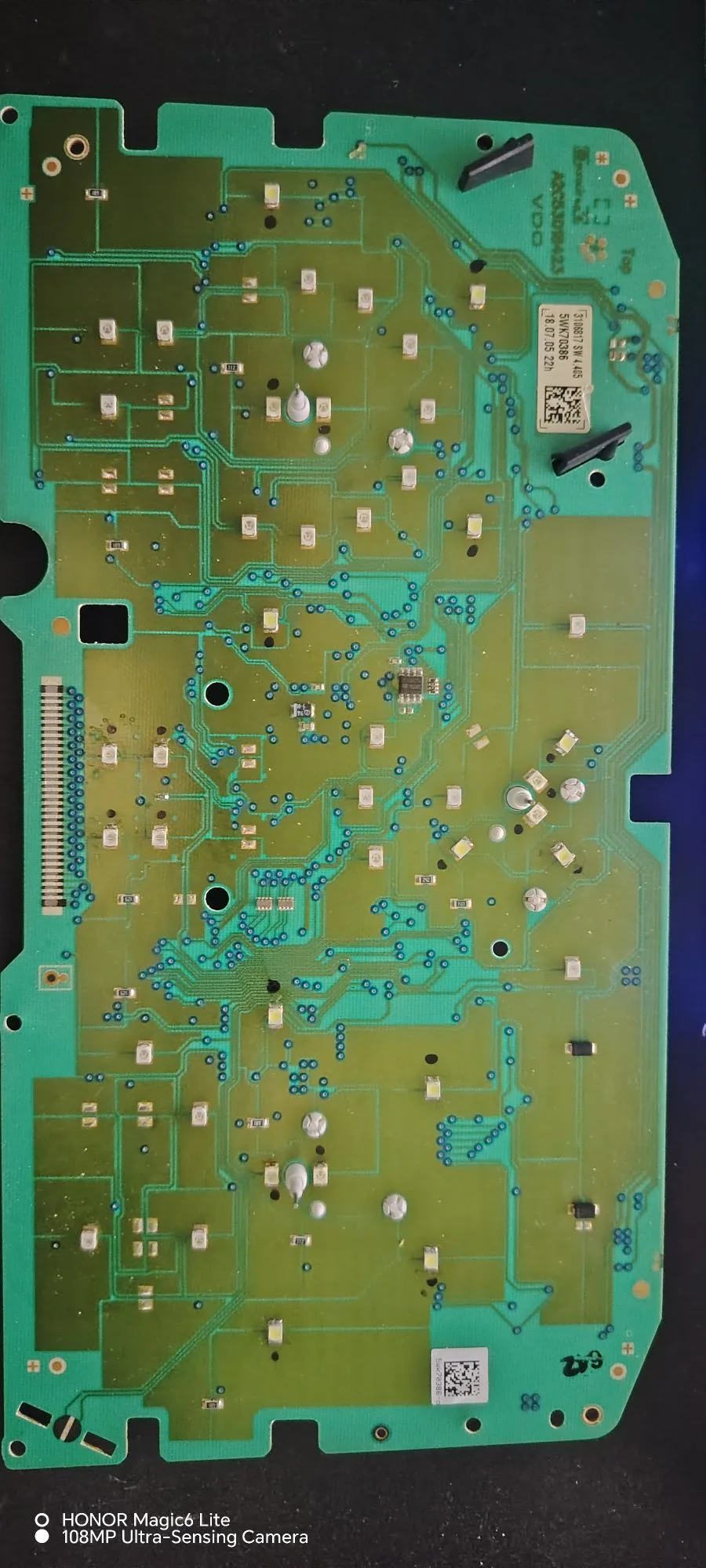

Dashboard LED replacement means removing factory-installed SMD LEDs from the instrument cluster PCB and installing new LEDs with different color or brightness.

This is not a simple bulb swap – it requires electronic-level work.

Types of LEDs used in dashboards

Most common:

• SMD 3528

• SMD 5050

• PLCC-2 / PLCC-4

Each model uses different layouts and brightness requirements.

Required tools

• Fine-tip soldering station

• Hot air station

• Flux

• Quality solder wire

• Anti-static tweezers

• Multimeter

• Marker for needle position

Instrument cluster disassembly

Steps usually include:

1. Battery disconnect

2. Trim removal

3. Cluster unscrewing

4. Connector release

5. Housing disassembly

Always consult official repair manuals.

Removing gauge needles

This is a critical step.

• Never force the needles

• Mark original positions

• Use even pressure

Incorrect removal leads to calibration errors.

Identifying correct LEDs

Clusters include:

• Backlight LEDs

• Needle illumination LEDs

• Warning indicator LEDs

Each type has specific brightness and polarity.

Proper soldering technique

Correct process:

1. Apply flux

2. Remove old LED

3. Clean pads

4. Position new LED

5. Solder quickly

Overheating destroys PCB traces.

Testing before reassembly

Always test:

• LED polarity

• Light uniformity

• Indicator visibility

Fix issues before final assembly.

Common mistakes

• Reversed polarity

• Excessive brightness

• Uneven lighting

• PCB damage

Legal and safety considerations

• Avoid distracting colors

• Warning lights must remain standard

• Dashboard must remain readable

Is dashboard LED replacement worth it?

Yes, when done correctly.
No, when rushed or done without experience.

Conclusion

Dashboard LED replacement is a rewarding upgrade when done professionally. With the right tools and patience, results can be impressive and safe.
