Ruf B8 Erprober: A 1,000 HP Flat-8 Twin-Turbo Statement of Mechanical Purity
Celebrating 50 years of relentless performance engineering, Pfaffenhausen-based manufacturer Ruf Automobile has unveiled the Ruf B8 Erprober—an unyielding development prototype designed to redefine high-end supercar dynamics. Acting as an experimental technology carrier (Erprober), this machine explicitly outlines the future trajectory for the brand’s next generation of bespoke hypercars. Rather than bowing to modern electrification or automated dual-clutch reliance, Ruf doubles down on raw mechanical engagement, engineering an all-new powertrain paired strictly with a manual gearbox.
Built upon an elongated CTR3 engineering chassis, the B8 Erprober serves a dual purpose: rigorously validating advanced structural and thermal technologies under extreme real-world conditions while giving purists a direct look into the brand’s post-CTR3 Evo flagship line.
The Powertrain: A 4.4-Liter Twin-Turbo Flat-8 Engine

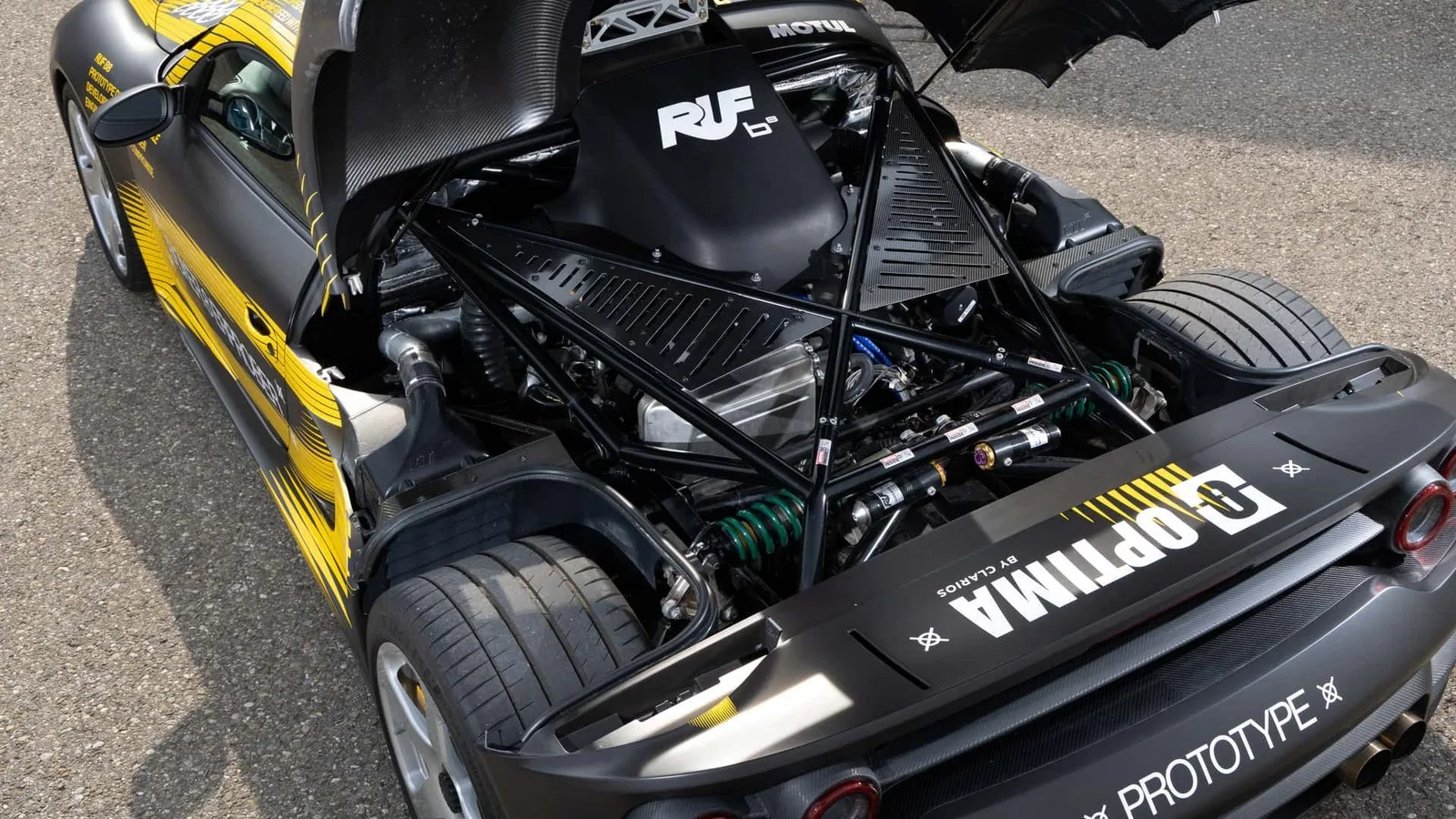

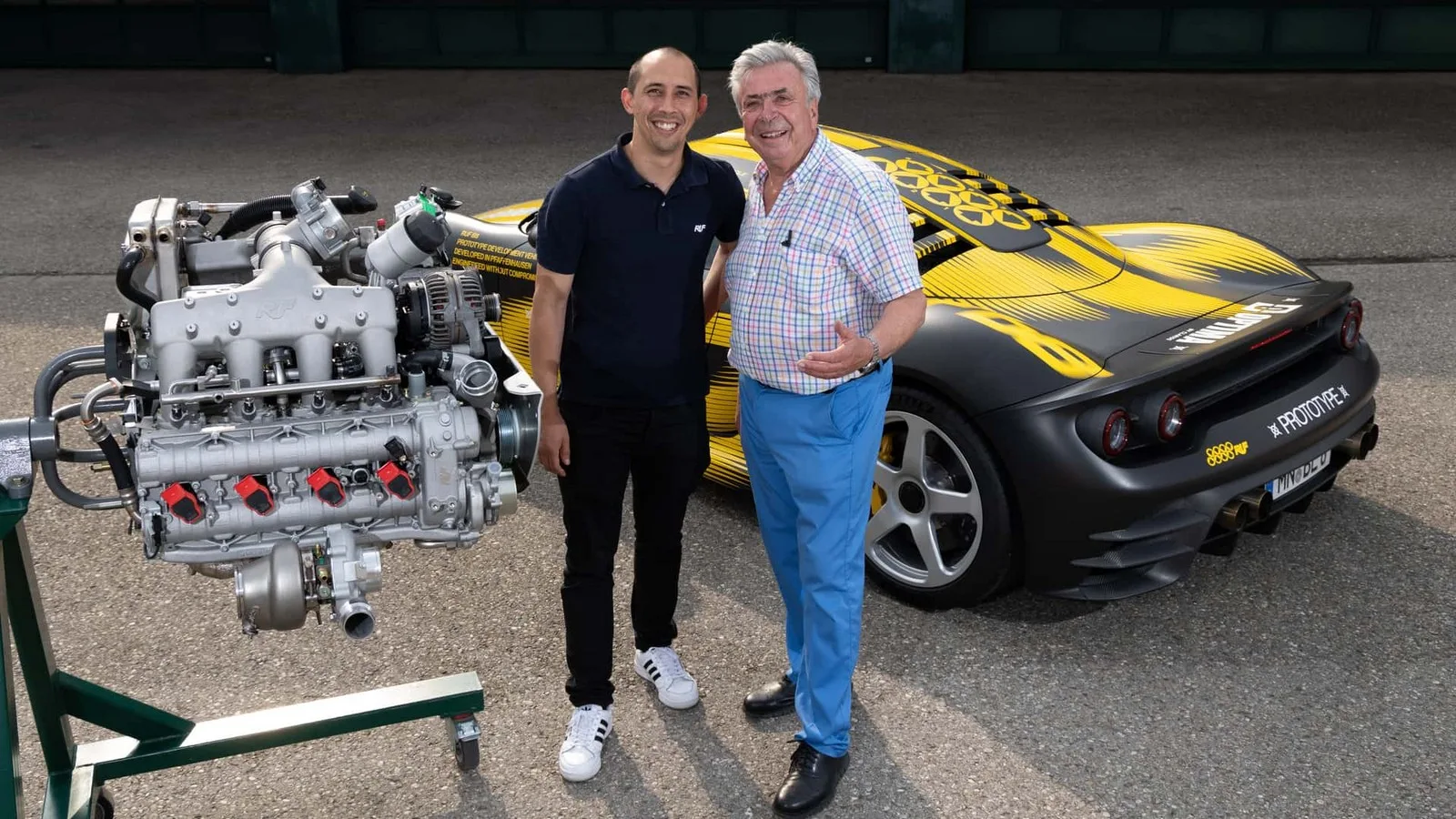

The centerpiece of the B8 Erprober lies concealed within its lightweight rear architecture. Departing from the traditional twin-turbo flat-six layouts long associated with the marque, Ruf engineers developed a completely new 4.4-liter twin-turbocharged flat-8 (boxer-eight) engine.
This bespoke power plant delivers staggering output figures, breaking well past conventional supercar metrics while remaining free of hybrid assistance:
-
Peak Power Output: Over 735 kW (Over 1,000 PS / 986 bhp)
-
Maximum Torque: Over 1,000 Nm (738 lb-ft)
-
Transmission: 6-speed manual transmission
-
Driven Axle: Rear-wheel drive with mechanical limited-slip differential
+---------------------------------------------------------------------------------+
| RUF B8 ERPROBER POWERTRAIN LAYOUT |
+---------------------------------------------------------------------------------+
| |
| [ 4.4L Biturbo Flat-8 Engine ] ---> [ 6-Speed Manual Transaxle ] ---> [ Rear ]|
| - Output: > 1,000 PS / 1,000 Nm - Triple-Plate Clutch Axle |
| - Config: Mid-Rear Longitudinal - Mechanical LSD |
| |
+---------------------------------------------------------------------------------+
ℹ️ Technical Note: Packaging an eight-cylinder horizontally opposed engine into a mid-engine footprint requires a drastically redesigned crankcase and specialized dry-sump oil system to manage oil scavenging under lateral loads exceeding 1.5 g.
Connecting this massive force to the asphalt is a traditional 6-speed manual gearbox. In an era dominated by rapid-fire dual-clutch transmissions (PDK), Ruf purposely selected a manual shift gate to guarantee maximum driver involvement and unfiltered mechanical feedback.
Aerodynamic Profile & Engineering Baseline
The chassis architecture builds on the carbon-fiber and steel spaceframe pedigree established by the Ruf CTR3 Evo, which currently tops the brand’s production lineup with 800 PS. However, the extended wheelbase of the B8 Erprober accommodates the physical length of the flat-8 block and its dual high-capacity charge-air cooling circuit.
| Dimension / Parameter | Ruf CTR3 Evo (Baseline) | Ruf B8 Erprober (Prototype) |
| Engine Configuration | 3.8L Twin-Turbo Flat-6 | 4.4L Twin-Turbo Flat-8 |
| Power Output | 800 PS (588 kW) | >1,000 PS (>735 kW) |
| Peak Torque | 990 Nm | >1,000 Nm |
| Transmission | 7-Speed Dual-Clutch / 6-Speed Manual | 6-Speed Manual Only |
| Chassis Platform | Carbon-Monocoque / Steel Frame | Elongated Bespoke Architecture |
| Primary Objective | Production Top-Tier Supercar | Experimental Tech Carrier |
Dynamic Performance and Thermal Architecture
Channeling over 1,000 horsepower through a manual transmission directly to the rear wheels demands exact driver input alongside robust gear-set metallurgy. Without digital traction aids or front-axle hybrid propulsion to split the load, the transaxle unit is built with high-strength alloy gear sets designed to withstand continuous torque spikes well beyond 1,000 Nm.
+---------------------------------------------------------------------------------+
| THERMAL & BOOST MANAGEMENT FLOW |
+---------------------------------------------------------------------------------+
| |
| [ Dual Turbochargers ] --> [ Side-Mounted Charge Coolers ] --> [ Intake ] |
| ^ | |
| |__________________ Exhaust Gas Recirculation __________________| |
| |
+---------------------------------------------------------------------------------+
⚠️ WARNING: Operating a 1,000+ PS rear-wheel-drive powertrain equipped with a manual gearbox requires precise thermal management. Boost levels must be actively managed across lower gear ratios to prevent severe thermal stress on the heavy-duty friction plates.
Debut at Goodwood: Tanner Foust at the Wheel
The public debut of the Ruf B8 Erprober takes place at the world-renowned Goodwood Festival of Speed. The prototype is scheduled for six official hillclimb runs throughout the event, piloted by professional racing driver and stunt driver Tanner Foust.

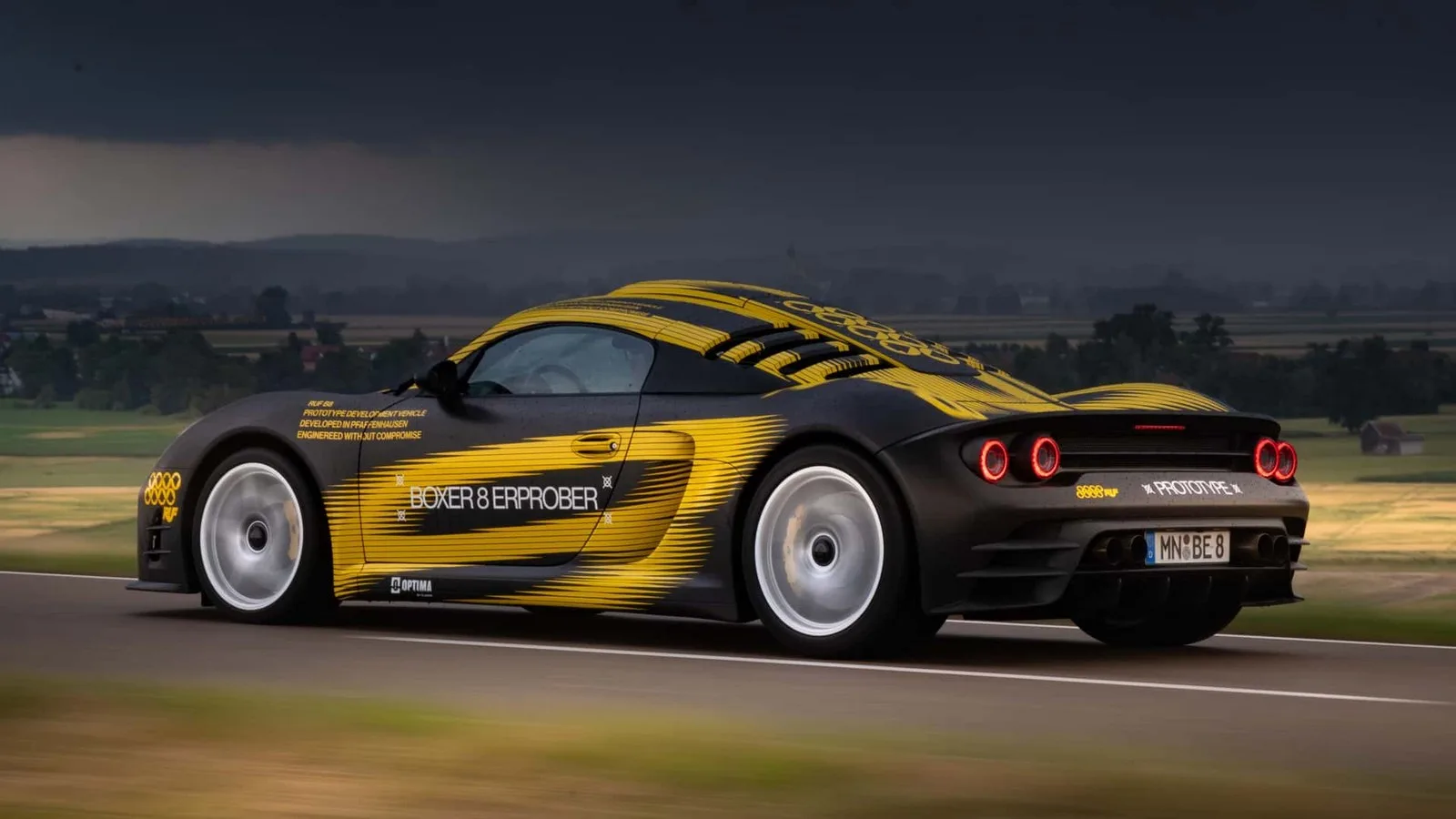

Visually, the vehicle makes an immediate impression through a custom-designed livery. Co-developed by Aloisa Ruf in collaboration with Optima Batteries, the aesthetic pays homage to the legendary 1987 Ruf CTR “Yellowbird”—the iconic machine that solidified Ruf’s reputation as a world-tier supercar developer when it achieved a record-breaking 339.8 km/h top speed at Nardo.
+---------------------------------------------------------------------------------+
| GOODWOOD DISPLAY PROGRAM |
+---------------------------------------------------------------------------------+
| * Event: Goodwood Festival of Speed |
| * Scheduled Runs: 6 Hillclimb Demonstrations |
| * Official Driver: Tanner Foust |
| * Livery Design: Aloisa Ruf x Optima Batteries (Yellowbird Tribute) |
+---------------------------------------------------------------------------------+
From Tuner to Independent Supercar Manufacturer
The development of the B8 Erprober illustrates how dramatically Ruf has transformed over recent decades. While historically recognized for high-performance builds derived from Porsche chassis, Ruf now operates as an independent, recognized vehicle manufacturer (Automobilhersteller).
Beginning with the landmark CTR Anniversary, Ruf introduced an in-house developed chassis featuring independent double-wishbone suspension, pushrod dampers, and custom axle geometry. The B8 platform continues this methodology: while maintaining styling cues reminiscent of classic sports car silhouettes, every structural component beneath the skin is engineered in-house at Pfaffenhausen.
+---------------------------------------------------------------------------------+
| RUF ARCHITECTURAL EVOLUTION |
+---------------------------------------------------------------------------------+
| |
| [ Modified OEM Chassis ] ---> [ CTR Anniversary Carbon Platform ] |
| (1980s - 2000s) - In-house Double Wishbone / Pushrod |
| | |
| v |
| [ B8 Erprober Architecture ] |
| - Bespoke Extended Flat-8 Spaceframe |
| |
+---------------------------------------------------------------------------------+
Although Ruf has not yet specified a formal production release date, the advanced engineering state of the B8 Erprober confirms that a production hypercar incorporating this twin-turbo flat-8 architecture is nearing its final validation phase.
Source: Ruf B8 Erprober: 1.000 PS läuten eine neue Supersportwagen-Ära ein!
✍️ Author: Bejenaru Alexandru Ionut – [email protected]
