Venuum 777 Mercedes-AMG G 63: Forged Carbon Aesthetics, Custom “7” Lighting Graphics, and Factory AMG V8 Performance
The Mercedes-AMG G 63 remains an undisputed icon within the high-performance luxury SUV sector. For decades, its boxy silhouette and twin-turbocharged powertrain have served as a blank canvas for high-end automotive tuners globally. From ultra-wide highway cruisers to heavy-duty off-road conversions, the G-Wagon attracts continuous customization.

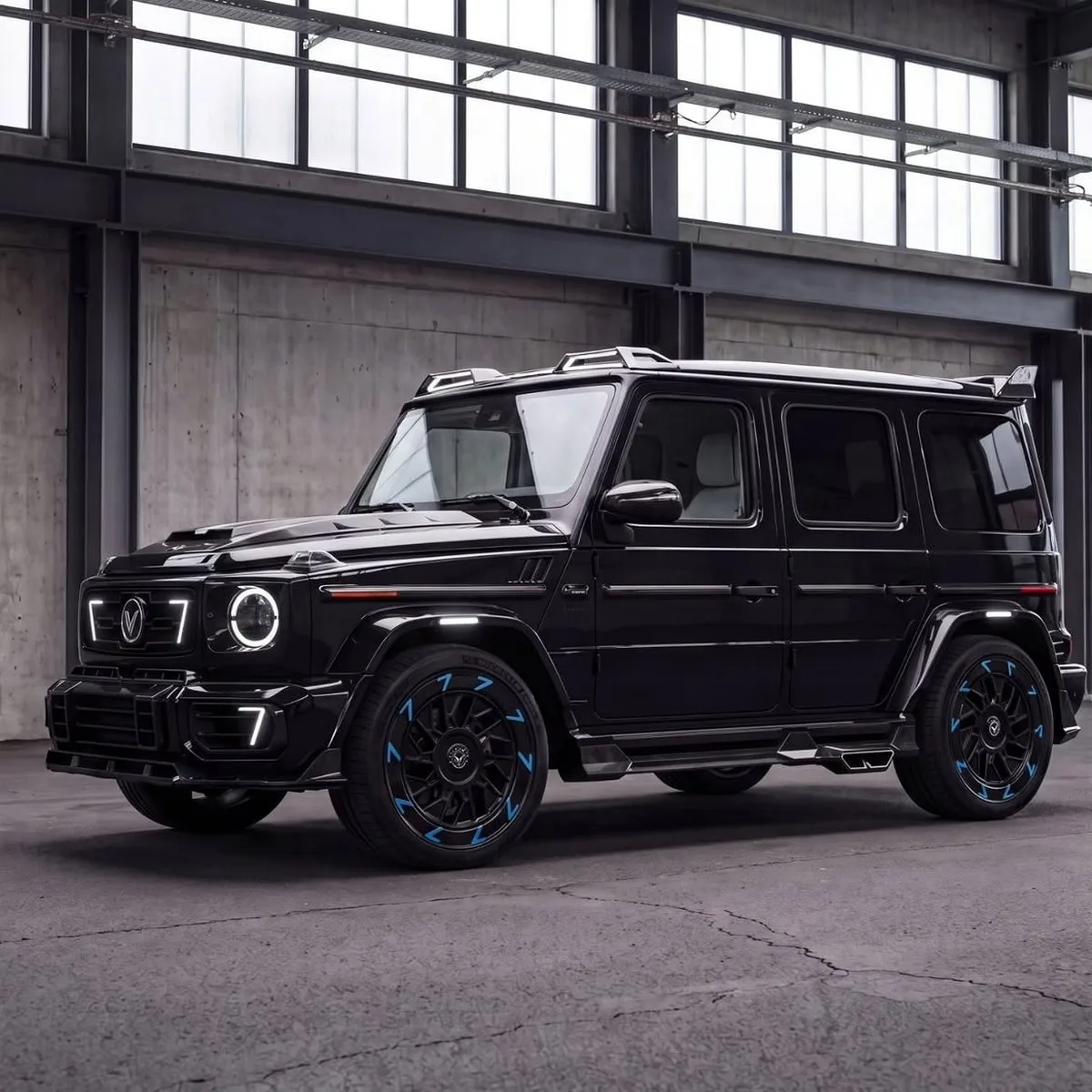

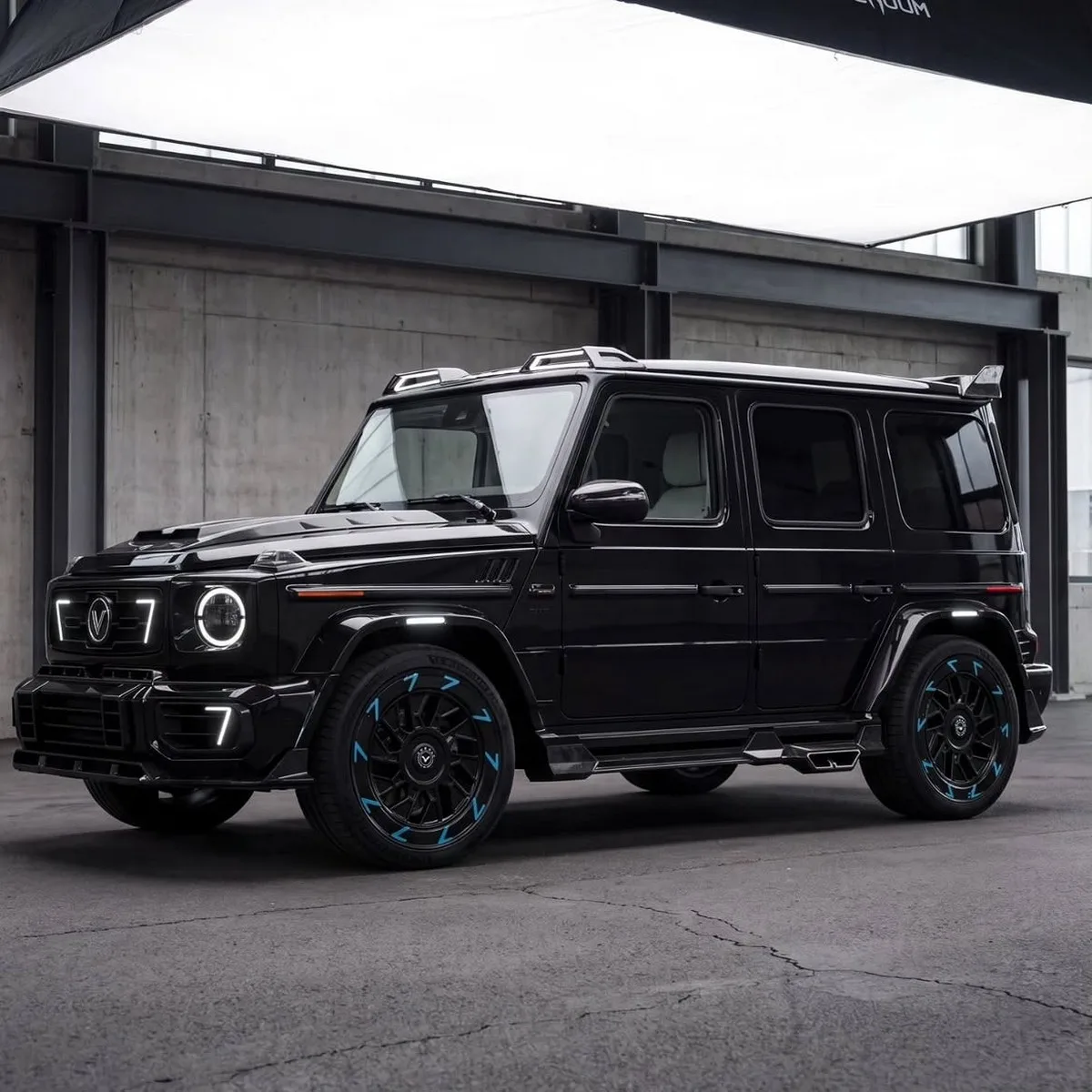

Dubai-based design house Venuum has officially released its latest program for the iconic SUV: the Venuum 777. Drawing aggressive design cues reminiscent of established aftermarket giants like Brabus and Mansory, the 777 package completely alters the visual identity of the G 63 through massive forged-carbon exterior panels, custom LED lighting signature elements, and bespoke aerodynamic extensions.
+-------------------------------------------------------------------+
| VENUUM 777 EXTERIOR CONVERSION MATRIX |
+-------------------------------------------------------------------+
| [ Custom Front Apron ] --> Integrated "7" Shaped LED Graphics |
| [ Forged Carbon Hood ] --> Dual Heat Extraction Vents |
| [ Widebody Arch Extensions] -> Side LED Markers & Vented Sills |
| [ Aerodynamic Roof Module] --> Integrated Lightbar & Rear Wing |
| [ Sculpted Rear Diffuser] --> Central Illuminated "V" Logo |
+-------------------------------------------------------------------+

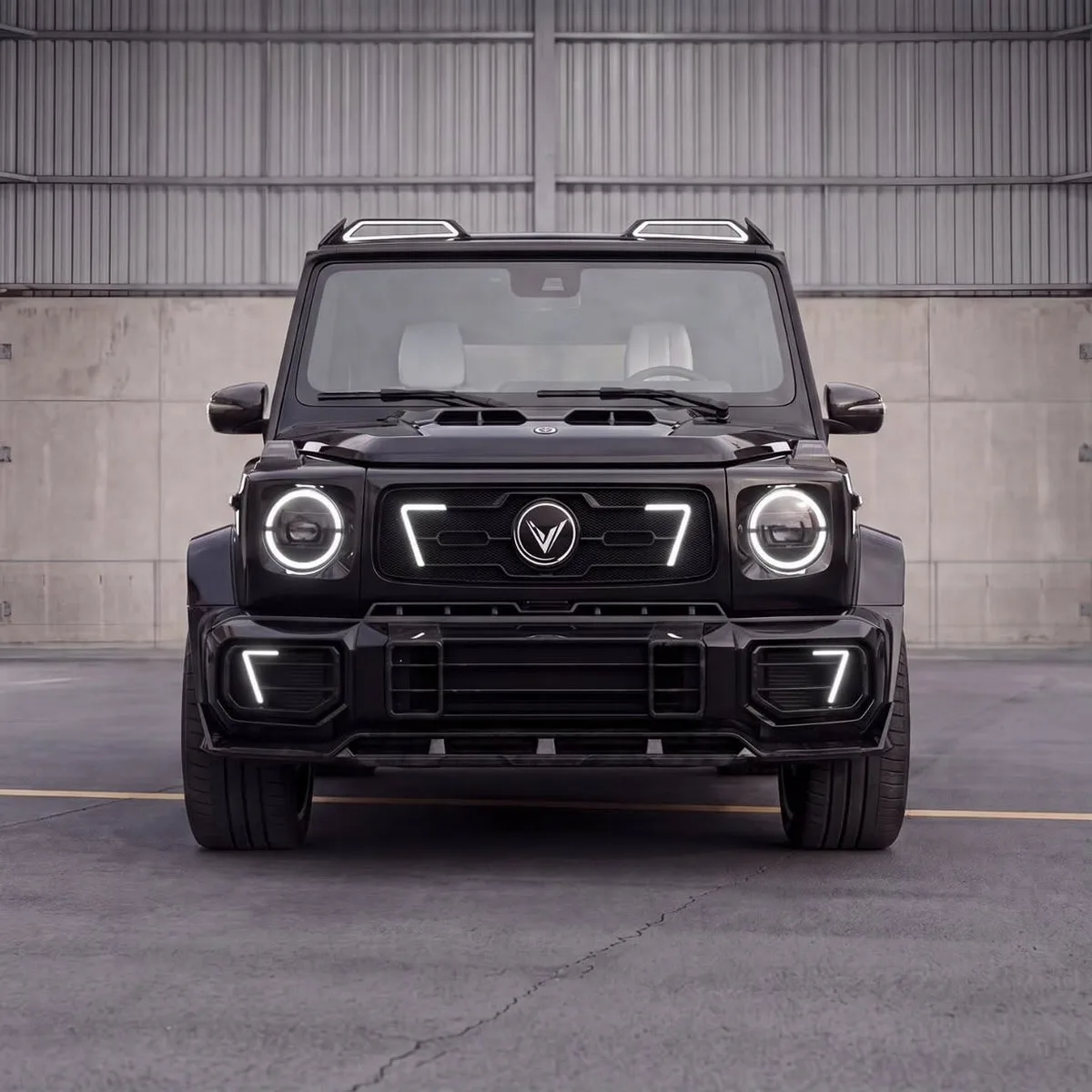

Front Fascia Overhaul: Architectural Grille and Signature “7” LED Optics
The standard Panamericana grille and round headlight surrounds define the stock factory AMG G 63. Venuum replaces these components entirely with a heavily sculpted front fascia dominated by custom lighting elements and aggressive cooling ducts.
+-------------------------------------------------------------------+
| VENUUM 777 FRONT LIGHTING LAYOUT |
+-------------------------------------------------------------------+
| [=== Roof Lightbar ===] [=== Roof Lightbar ===] |
| |
| /=========== [ Custom Grille ] /=========== |
| | LED Unit "7"| < Venuum Badge > | LED Unit "7"| |
| ===========/ ===========/ |
| |
| +-------------------------------------------------------+ |
| | Vented Forged-Carbon Hood Shell | |
| +-------------------------------------------------------+ |
| |
| /=========== /=========== |
| [ Corner Intake ] [ Front Splitter Vanes ] [ Corner Intake ] |
| ===========/ ===========/ |
+-------------------------------------------------------------------+
Key Front Exterior Modifications
-
Numeric “7” LED Running Lights: Custom daytime running light modules shaped directly into the number “7” sit prominently inside the lower front bumper intakes. These elements serve as the primary visual identifier for the 777 program.
-
Bespoke Radiator Grille: The vertical OEM chrome slats give way to a custom honeycomb structure featuring exposed carbon frame surrounds and prominent Venuum badging.
-
Vented Engine Bonnet: A replacement hood constructed from forged carbon fiber features dual high-volume extraction vents designed to draw engine bay heat outward during high-load driving.
-
Roof-Mounted Light Module: Sitting directly above the windshield header is an aerodynamic carbon pod containing high-output forward-facing LED light bars.

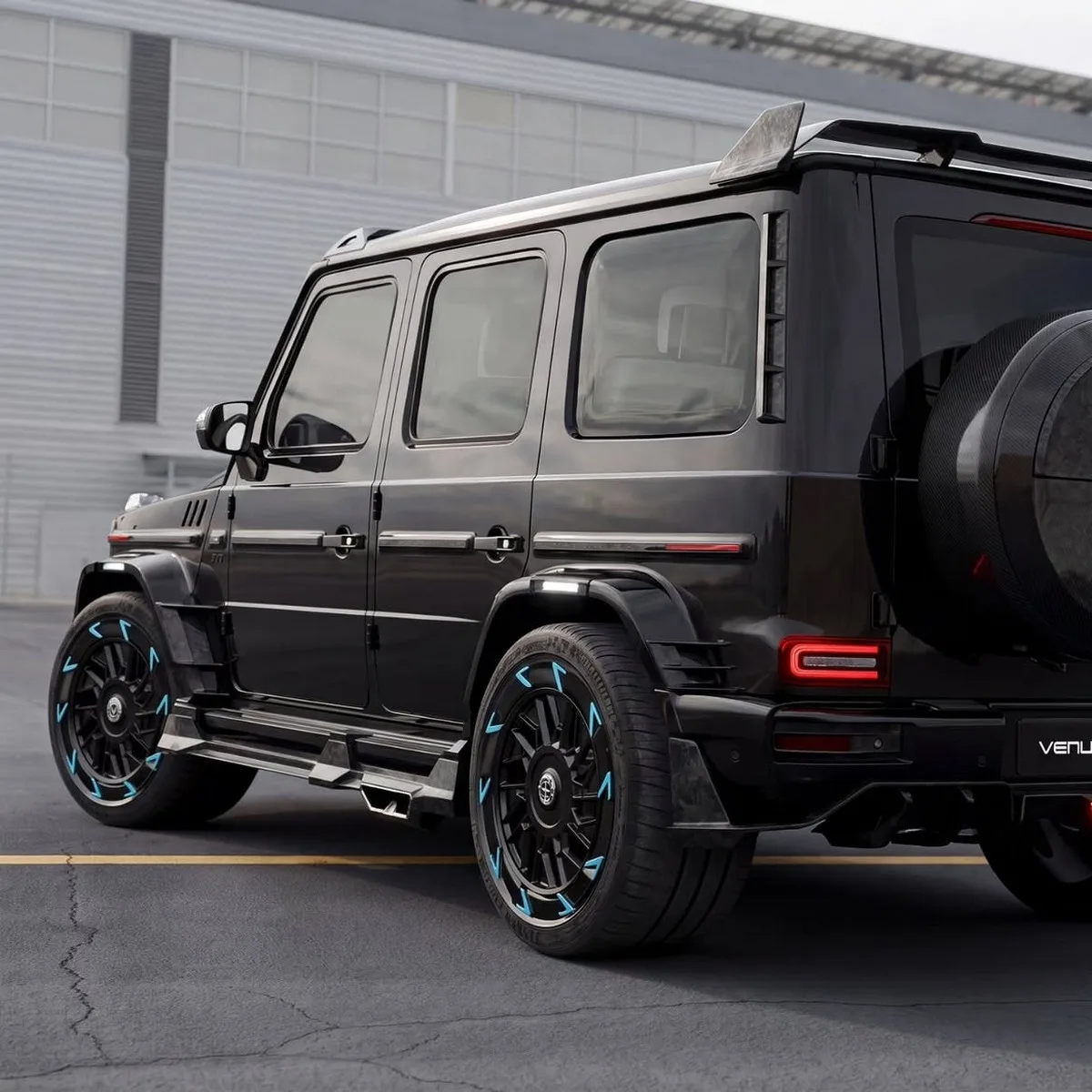

Profile Architecture: Widebody Flares and Active Ergonomics
In profile, the Venuum 777 projects a significantly wider stance than the stock vehicle. The extended fender arches widen the track width while incorporating functional air release vents.
+-------------------------------------------------------------------+
| PROFILE & SIDE TRACK LAYOUT |
+-------------------------------------------------------------------+
| /===================================================== |
| / Carbon Upper Roof Spoiler & Lower Wind Deflectors |
| | [ Front Door ] | [ Rear Passenger Door ] | |
| o-----------------------------o---------------------------o |
| Widebody Fender Arch / Widebody Fender Arch / |
| ___ Custom 7-Spoke Wheel_/ ___ Custom 7-Spoke Wheel_/ |
| |
| ======================================================= |
| [ Electrically Deployable Side Running Boards ] |
+-------------------------------------------------------------------+
Side Profile Technical Enhancements
-
Extended Widebody Arches: Flares constructed from forged carbon fiber incorporate integrated LED accent strips that echo the front lighting geometry.
-
Side-Outlet Exhaust System: The traditional AMG dual-tip side pipes are swapped for custom quad exhaust finishers that vent directly in front of the rear tires.
-

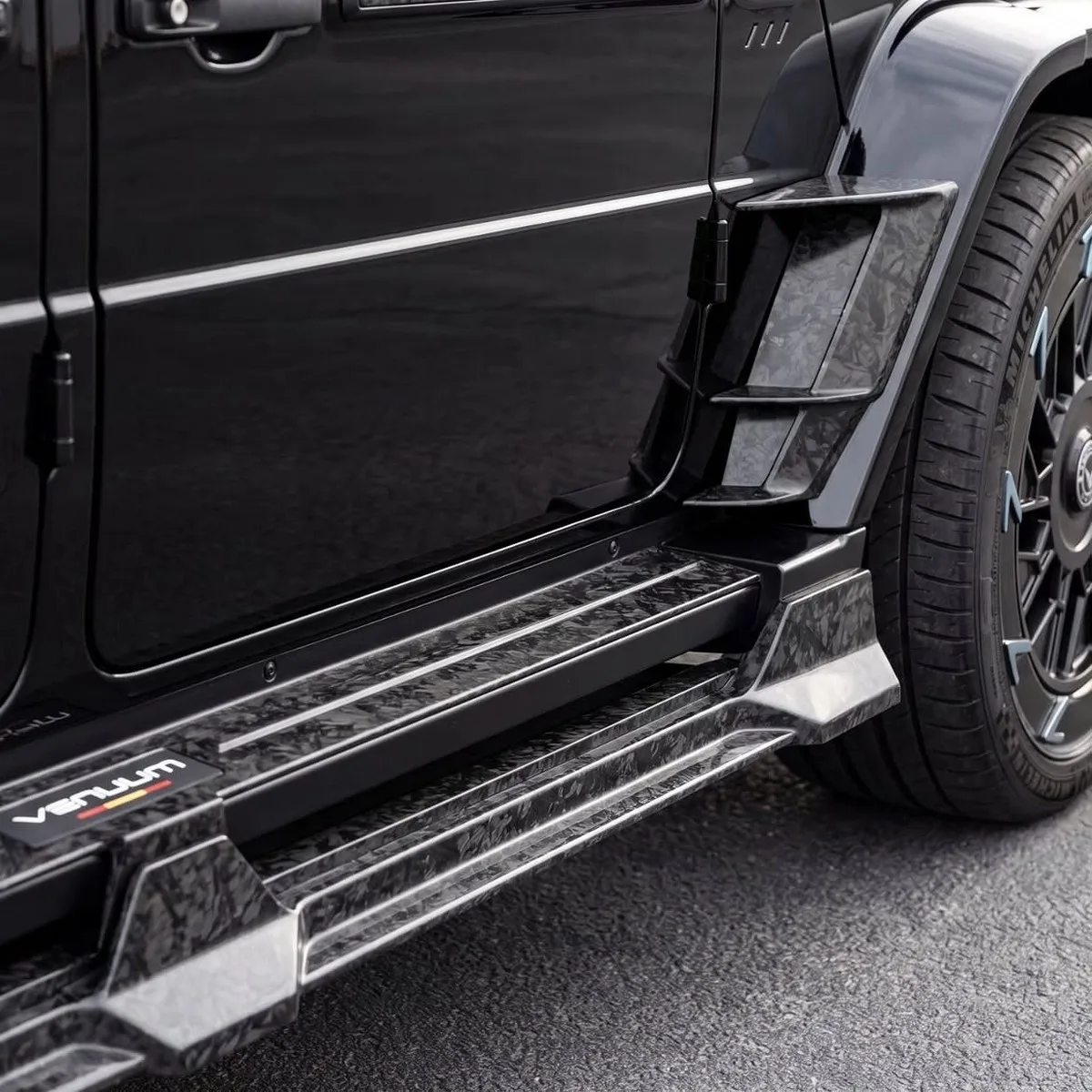

Electric Power Side Steps: Power-deployable running boards automatically extend outward when doors open. This preserves ground clearance when retracted while simplifying cabin entry.
-
Forged Alloy Wheels: Massive custom-engineered light alloy wheels feature a multi-spoke arrangement with high-gloss black paint, exposed carbon fiber outer barrels, and subtle blue accents outlining the number “7” motif.

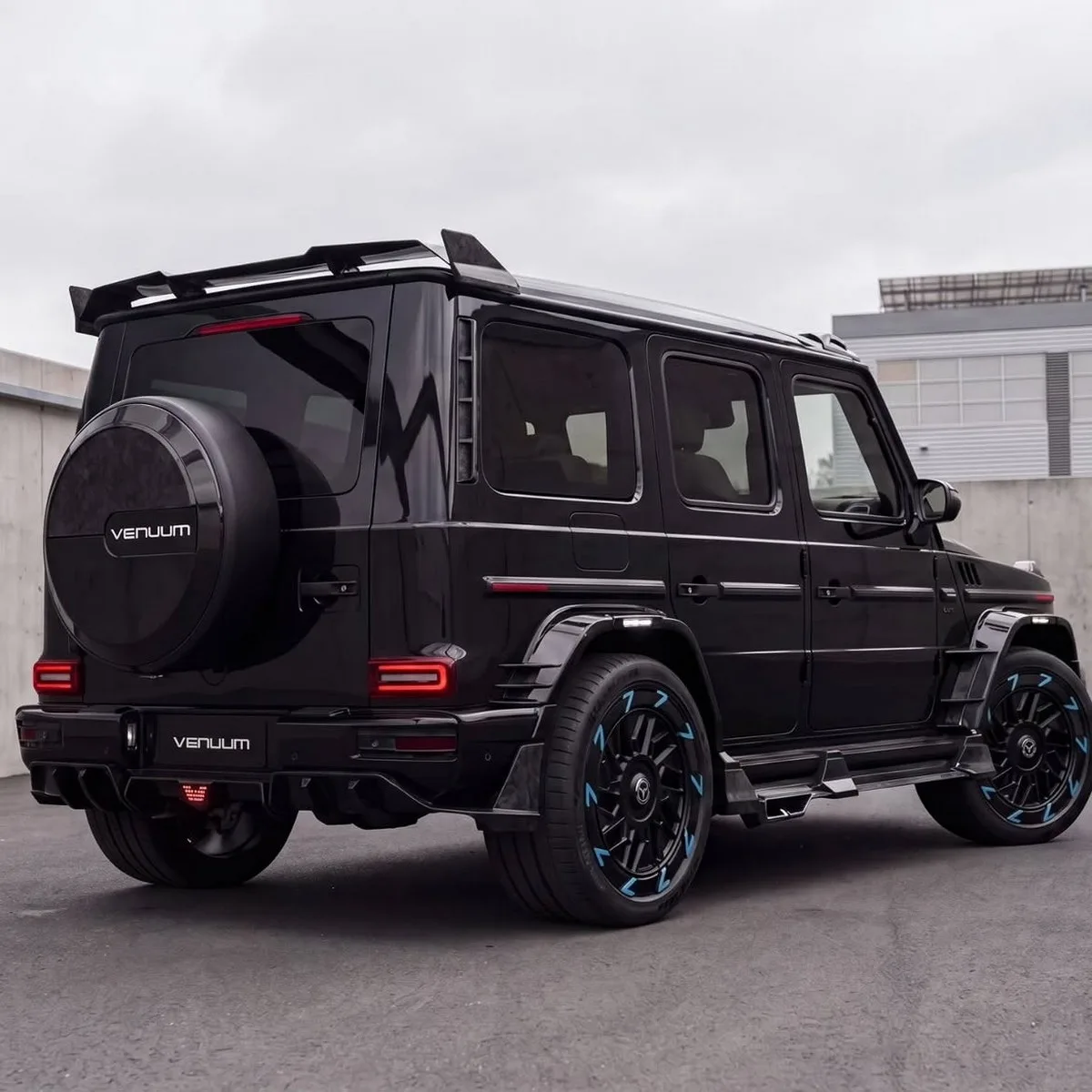

Rear Design Treatment: Diffuser Vanes and High-Downforce Elements
The rear section of the Venuum 777 retains the upright box layout of the G-Class but introduces heavy aerodynamic additions.
+-------------------------------------------------------------------+
| REAR AERODYNAMIC & DIFFUSER LAYOUT |
+-------------------------------------------------------------------+
| [====================== Roof Wing Spoiler =====================] |
| |
| /=========== /=========== |
| | Tail Lamp | [ Forged Carbon Spare Cover ] | Tail Lamp ||
| ===========/ < Venuum Emblem Branding > ===========/ |
| |
| +-------------------------------------------------------+ |
| | Widebody Fender Extension Vents | |
| +-------------------------------------------------------+ |
| |
| /=========================================================== |
| [ Diffuser Vanes | Illuminated "V" Logo | Diffuser Vanes ] |
| ===========================================================/ |
+-------------------------------------------------------------------+
Comprehensive Rear Upgrades
-
Forged Carbon Spare Wheel Housing: The original steel spare tire cover is replaced by a full carbon fiber shell sporting a recessed Venuum logo.
-
Roof-Mounted Wing: A dual-element wing assembly mounted atop the rear tailgate increases visual weight while guiding airflow over the flat rear window glass.
-
Aggressive Rear Diffuser: The underside of the rear bumper features deep aerodynamic diffuser fins framing an illuminated central “V” emblem.
ℹ️ Technical Note: Forged composite carbon fiber utilizes randomly arranged chopped fiber bundles rather than woven sheets. This manufacturing method allows complex three-dimensional compound shapes—such as wheel arch vents and multi-fin diffusers—to be molded without structural seam weaknesses.
Powertrain Specifications: Factory AMG 4.0L Biturbo V8 Retained
Unlike tuning firms that heavily modify engine internals, Venuum has elected to leave the mechanical core of the AMG G 63 unchanged for the 777 release. Power is provided by the factory Handcrafted AMG 4.0-liter V8 biturbo engine.
+-------------------------------------------------------------------+
| HANDCRAFTED AMG V8 POWERTRAIN LAYOUT |
+-------------------------------------------------------------------+
| [ 4.0L M177 Twin-Turbo V8 ] ---> 430 kW (585 PS) / 850 Nm Torque |
| | |
| v |
| [ AMG SPEEDSHIFT TCT 9-Speed Automatic ]|
| | |
| v |
| [ AMG Performance 4MATIC AWD System ] |
+-------------------------------------------------------------------+
Mechanical Performance Highlights
-
Engine Code: Mercedes-AMG M177 hot-inside-V twin-turbocharged V8.
-
Power Output: 430 kW (585 PS / 577 HP) produced between 6,000 RPM and 6,500 RPM.
-
Peak Torque: 850 Nm (627 lb-ft) available from 2,500 RPM through 3,500 RPM.
-
Transmission: 9-speed AMG SPEEDSHIFT TCT torque-converter automatic with manual paddle-shift override modes.
-
All-Wheel-Drive Configuration: Permanent AMG Performance 4MATIC system with a 40:60 front-to-rear torque distribution bias and three 100% locking mechanical differentials.
Technical Comparison: Factory AMG G 63 vs. Venuum 777 Package
The following comparison details the dimensional, mechanical, and visual baseline differences between the factory production model and the Venuum 777 conversion.
| Vehicle Parameter | Factory Mercedes-AMG G 63 | Venuum 777 Program Spec |
| Engine Architecture | 4.0L Twin-Turbo V8 (M177) | 4.0L Twin-Turbo V8 (Unchanged) |
| Power Output | 430 kW / 585 PS | 430 kW / 585 PS |
| Peak Torque | 850 Nm | 850 Nm |
| 0-100 km/h Acceleration | 4.5 Seconds (Standard) / 4.2 Seconds | 4.2 – 4.4 Seconds (Varying Wheel Weight) |
| Body Panel Material | Steel & Aluminum | Forged Carbon Fiber Composite |
| Front DRL Design | Circular Halo Ring | Custom “7” Shaped LED Matrix |
| Roof Aerodynamics | Flat Factory Sheet Metal | Dual Pod: LED Lightbar & Rear Spoiler |
| Running Boards | Fixed Stainless Steel | Electrically Deployable Power Steps |
| Wheel Fitment | 20″ to 22″ OEM Alloys | Bespoke Large-Diameter 7-Spoke Alloys |
Interior Cabin Ergonomics: Factory Craftsmanship Retained
While certain high-end custom shops dismantle the interior entirely, early presentations of the Venuum 777 indicate a largely stock interior arrangement.
+-------------------------------------------------------------------+
| COCKPIT INTERIOR LAYOUT |
+-------------------------------------------------------------------+
| [ Dual 12.3-Inch Widescreen Cockpit Displays (MBUX Integration) ]|
| |
| ( AMG Performance Wheel ) ( Center Console Controls ) |
| - Flat-Bottom Nappa Leather - Differential Lock Switches |
| - Aluminum Shift Paddles - Touchpad Media Controller |
| |
| [ White Nappa Leather Seating Surfaces with Black Stitching ] |
+-------------------------------------------------------------------+
Interior Features Overview
-
Upholstery Layout: Clean white Nappa leather upholstery accented by black contrast piping and micro-stitching.
-
Digital Displays: Dual 12.3-inch widescreen displays run the native Mercedes-Benz MBUX interface, retaining factory AMG performance telemetry displays.
-
Differential Lock Controls: Center-dash controls for the three independent mechanical locking differentials remain fully functional for off-road operation.
⚠️ WARNING: Adding large-diameter aftermarket wheels with ultra-low-profile tires significantly alters ride compliance. The reduced tire sidewall transfers road impact directly to chassis bushings and wheel bearings, requiring more frequent suspension inspections under hard driving.
Chassis Dynamics and Structural Considerations
Modifying an SUV with a traditional ladder-frame chassis requires careful weight distribution management. The addition of widebody extensions and forged carbon elements affects overall unsprung weight and aerodynamic drag.
SUSPENSION & CHASSIS DYNAMICS LOOP
+---------------------------------------------------------+
| AMG RIDE CONTROL Adaptive Damping System |
+---------------------------------------------------------+
|
v
+---------------------------------------------------------+
| Independent Front Axle & Rigid Rear Axle |
+---------------------------------------------------------+
|
v
+---------------------------------------------------------+
| Forged Alloy Wheels with Wider Offset & Track Width |
+---------------------------------------------------------+
Chassis Hardware Breakdown
-
Suspension Layout: Independent double-wishbone front suspension paired with a rigid rear axle utilizing coil springs and dynamic gas-pressurized shock absorbers.
-
AMG RIDE CONTROL: Continuously adjusting electronically controlled damping alters shock stiffness across Comfort, Sport, and Sport+ modes.
-
Braking Equipment: High-performance AMG braking system with 6-piston fixed front calipers clamping 370 mm perforated steel discs, alongside single-piston floating rear calipers.
Market Positioning and Exotic Vehicle Status
The Venuum 777 package enters a competitive aftermarket landscape occupied by elite European tuning houses. By focusing heavily on visual impact through chopped forged carbon and signature LED shapes, the 777 is built primarily for vehicle collectors seeking extreme road presence.
+-------------------------------------------------------------------+
| AFTERMARKET G-CLASS STYLING MATRIX |
+-------------------------------------------------------------------+
| [ Brabus Widestar ] --> Clean, Integrated OEM+ Carbon Styling |
| [ Mansory Gronos ] --> Radical Overhauls & High Engine Output |
| [ Venuum 777 ] --> Exclusive Carbon Bodykit & "7" Lighting|
+-------------------------------------------------------------------+
While pricing for the complete 777 conversion remains strictly on-request through Venuum, the combination of intricate composite carbon manufacturing and bespoke lighting modules positions this build among the most exclusive G-Wagon conversions available.
