BMW XM Neue Klasse LCI: Digital Rendering, Futuristic Design Language, and Hybrid Drivetrain Speculations
The BMW XM stands out as one of the most polarizing performance vehicles on the road today. As the first standalone model from BMW M since the legendary M1, it challenges traditional automotive design norms. It pairs a heavy body-on-frame stance with a powerful V8 plug-in hybrid drivetrain.

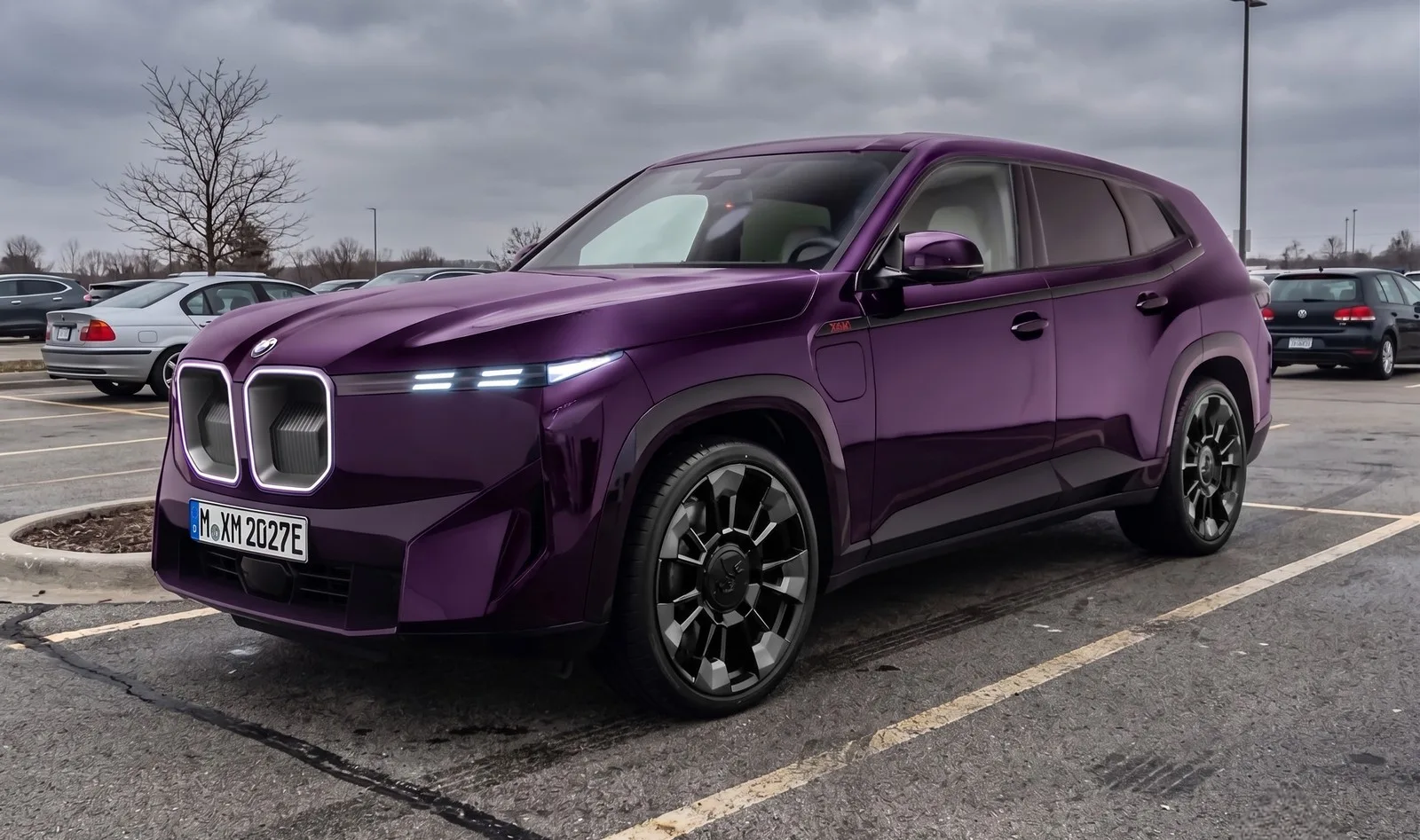

As BMW moves toward its next design era, independent digital design renderings imagine a mid-cycle update. This concept study applies the minimalist Neue Klasse design language directly onto the flagship Sports Activity Vehicle (SAV).
+-------------------------------------------------------------------+
| BMW XM NEUE KLASSE DESIGN INTEGRATION |
+-------------------------------------------------------------------+
| [ Extended Monolithic Stance ] --> Retains massive SAV volume |
| [ Minimalist Kidney Panel ] --> Integrates glass & DRL optics|
| [ Aerodynamic Lower Apron ] --> Directs high-speed airflow |
| [ Ultra-Slim Rear Tail Lights ] --> Clean horizontal LED graphics|
+-------------------------------------------------------------------+

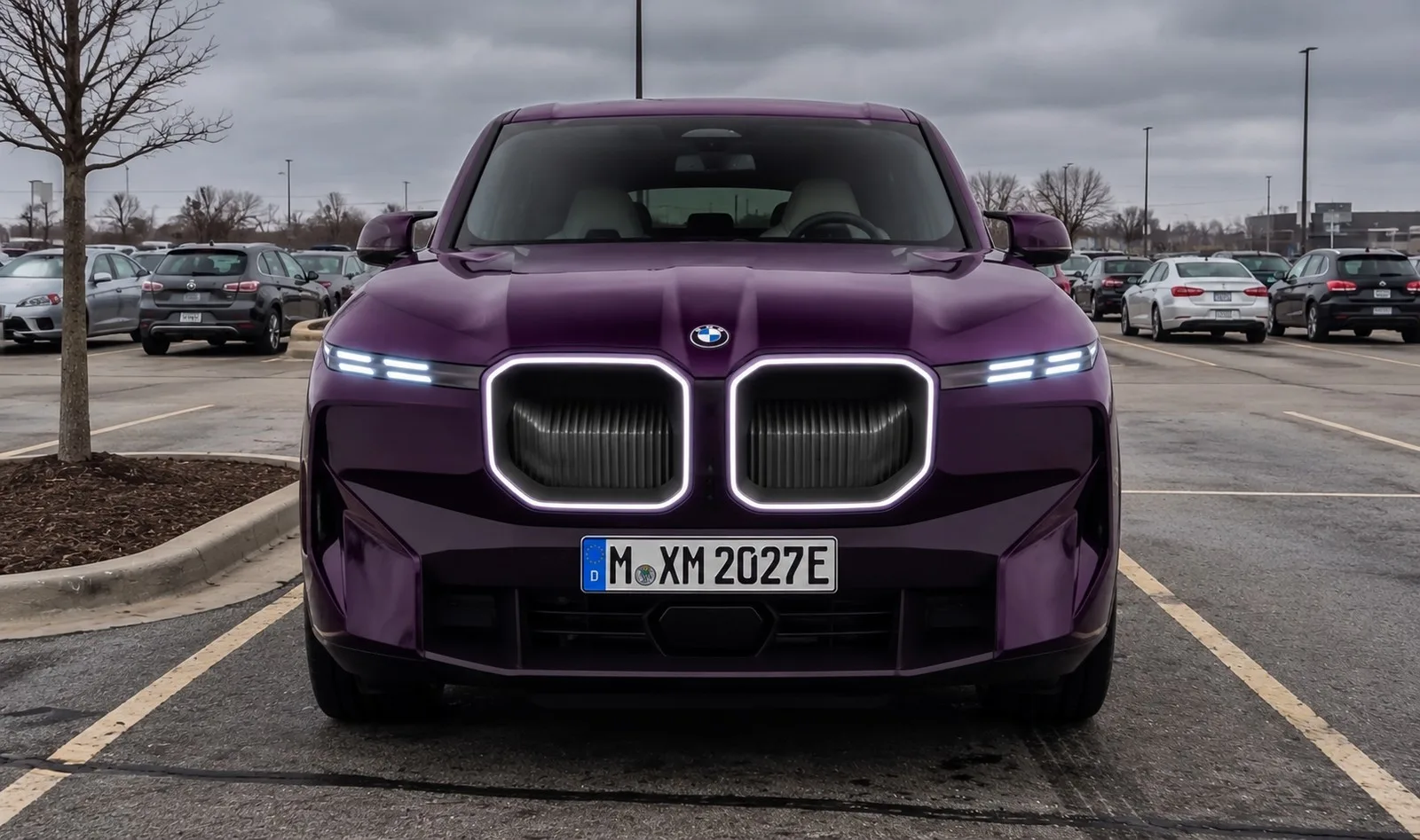

Front Fascia Overhaul: Minimalist Aesthetics Meet High-Performance Cooling
The biggest visual shift occurs at the front end. The original model uses split headlight units and sharp, aggressive bumper cuts. In contrast, the Neue Klasse interpretation simplifies the entire front structure.
+-------------------------------------------------------------------+
| NEUE KLASSE FRONT MESH LAYOUT |
+-------------------------------------------------------------------+
| [=== Light Strip ===] [=== Light Strip ===] |
| | Slim Matrix LED | < Illuminated Grille > | Slim Matrix LED ||
| +-----------------+ +-----------------+|
| |
| +-----------------------------------------------------+ |
| | Smooth Flush Front Fascia | |
| +-----------------------------------------------------+ |
| |
| /========= /========= |
| [ Active Intake ] [ Active Intake ]
| =========/ =========/ |
+-------------------------------------------------------------------+
Key Front Styling Enhancements
-
Horizontal Illuminated Grille: The large dual kidney grilles merge into a single wide glass panel. Internal LED elements illuminate the outer perimeter dynamically.
-
Integrated Slim Matrix Lights: Ultra-thin LED daytime running lights sit flush inside the upper grille edges. The main headlight pods activate only when needed.
-
Streamlined Front Apron: The lower bumper removes clutter. Larger active air intakes sit at the bottom corners to cool the twin-turbo V8 engine.
Side Profile Retention: Maintaining the Flagship Silhouette
Designers preserved the side profile deliberately. The massive proportions define the overall presence of the BMW XM. Altering these core lines would weaken its unmistakable road presence.
+-------------------------------------------------------------------+
| SAV SIDE PROFILE ARCHITECTURE |
+-------------------------------------------------------------------+
| /=================================================== |
| / High Beltline & Tapered Roof Contour |
| | [ Front Door ] | [ Rear Passenger Door ] | |
| o---------------------------o---------------------------o |
| Gloss Black Cladding / Wheel Arch Flares / |
| _____ 23" Wheels _____/ _____ 23" Wheels _____/ |
+-------------------------------------------------------------------+
Exterior Details and Side Refinements
-
Contrasting Wheel Arch Trim: Gloss black protective trim remains along the wheel arches and lower sills. This feature provides a sharp contrast against light exterior paint options.
-
Aerodynamic Alloy Wheels: New 23-inch forged alloy wheels reduce drag. Flush-mounted surface panels guide air away from the brake calipers.
-
Flush Door Handles: Recessed electronic door handles replace conventional units. This change cleans up side surfacing and improves high-speed aerodynamic efficiency.

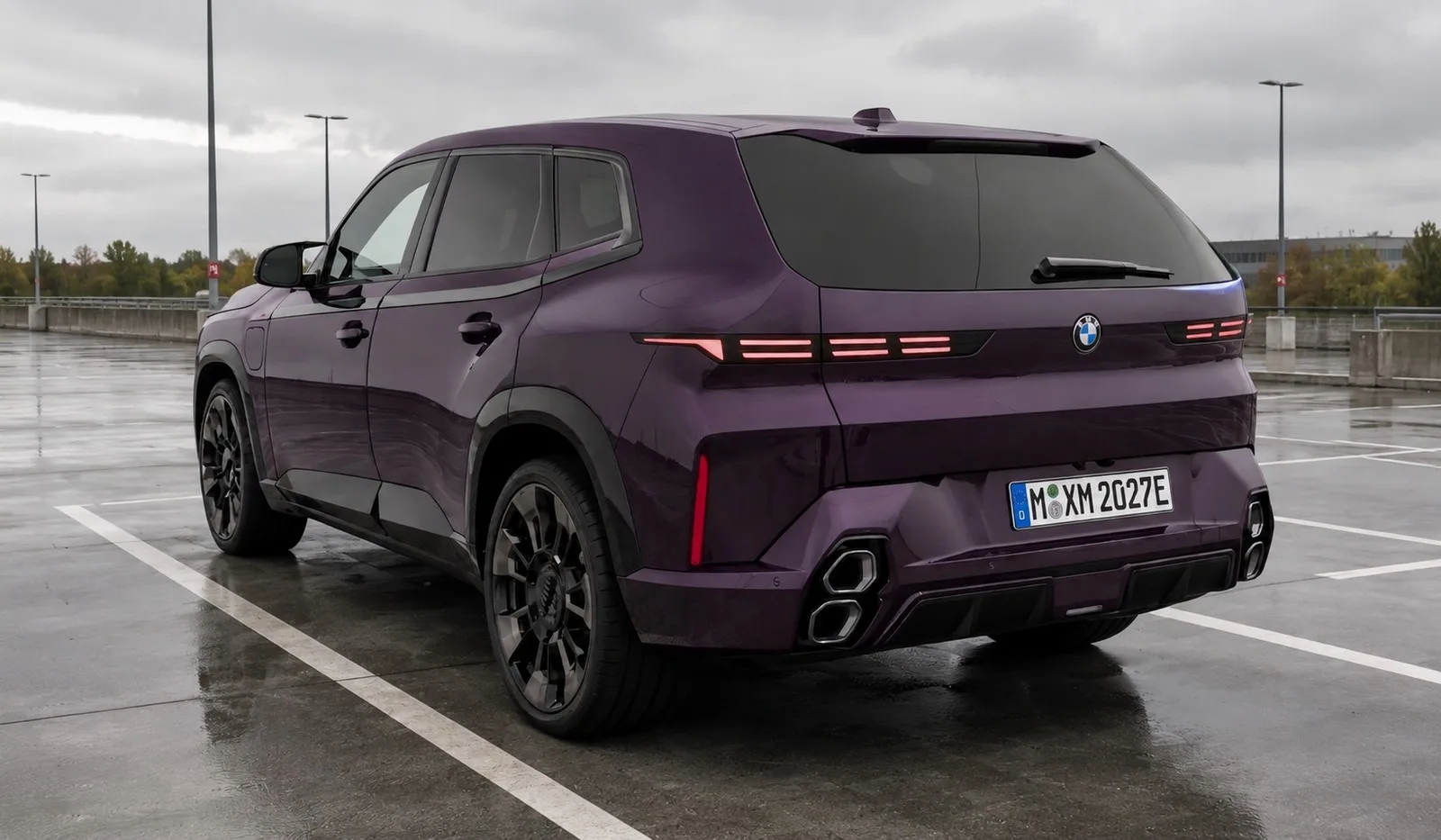

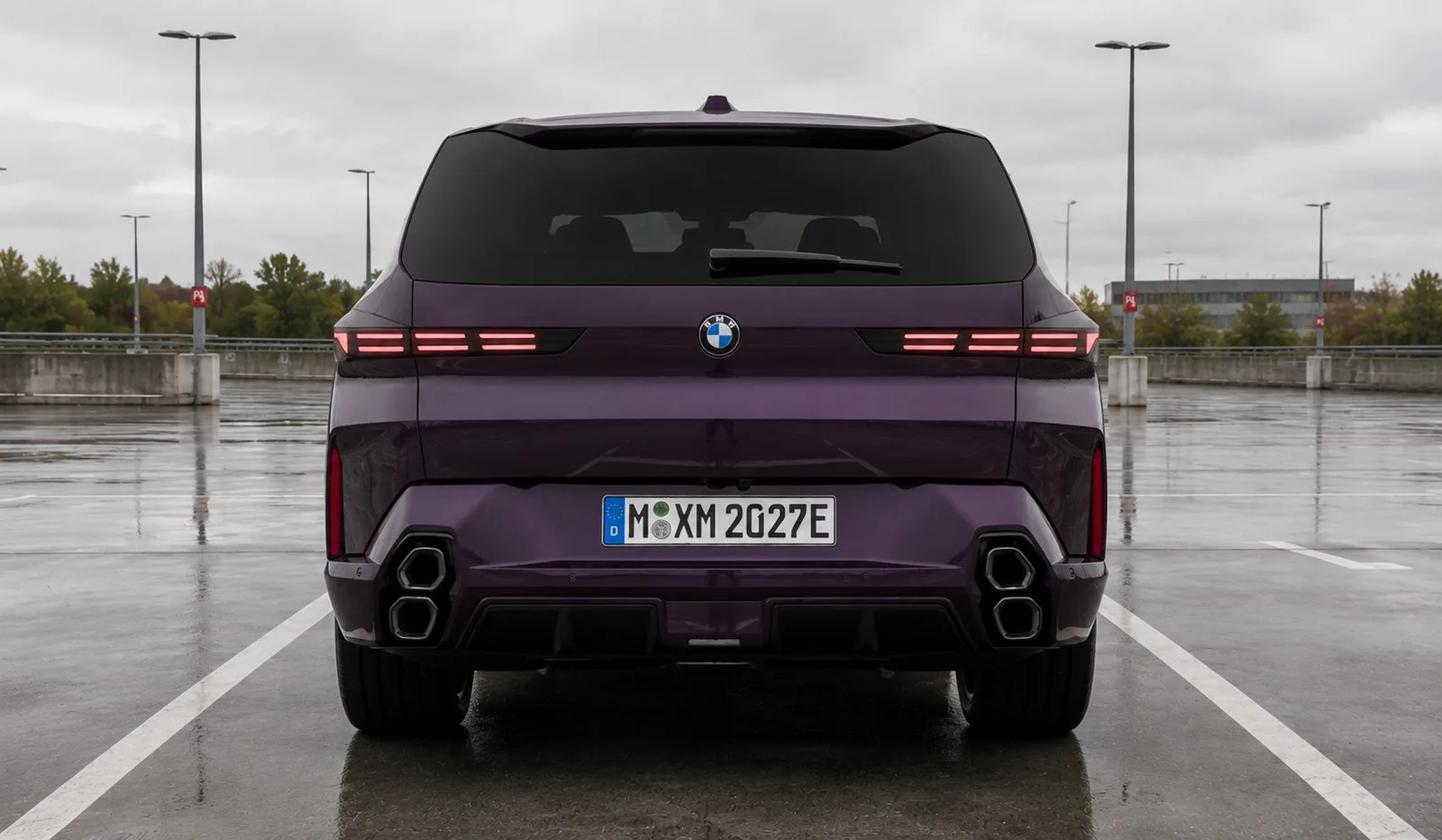

Rear Design Updates: Cleaner Lines and Sculpted Light Strips
The rear section receives significant revisions to match the futuristic front end. The stock dual-stacked vertical tailpipes remain, but the surrounding bumper geometry looks far cleaner.
+-------------------------------------------------------------------+
| REAR LIGHT & APRON LAYOUT |
+-------------------------------------------------------------------+
| [======================== Light Strip =========================] |
| |
| /======= /======= |
| | Vertical| [ Rear Diffuser ] | Vertical| |
| | Exhaust | | Exhaust | |
| =======/ =======/ |
+-------------------------------------------------------------------+
Technical Rear Modifications
-
Ultra-Slim LED Tail Lights: Narrow light bars span the entire rear width. They give the SUV a wider, lower stance on the road.
-
Integrated Downforce Diffuser: A sculpted carbon-fiber rear diffuser manages underbody air extraction. This reduces turbulence at high highway speeds.
-
Refined Tailgate Surfacing: The license plate recess sits deeper into the lower bumper. This creates a clean, smooth surface across the upper tailgate.
ℹ️ Technical Note: Simplifying exterior surface cuts lowers aerodynamic drag coefficients. Reducing surface turbulence improves electric driving range without increasing high-voltage battery size.
Mechanical Foundations: The M TwinPower Turbo V8 Drivetrain
While the rendering focuses on visual styling, a real Life Cycle Impulse (LCI) would carry forward the robust M HYBRID powertrain. The system pairs a high-revving 4.4-liter twin-turbo V8 engine with a transmission-integrated electric motor.
+-------------------------------------------------------------------+
| M HYBRID POWERTRAIN ARCHITECTURE |
+-------------------------------------------------------------------+
| [ 4.4L S68 Twin-Turbo V8 ] ---> [ Electric Motor (145 kW) ] |
| | |
| v |
| [ 8-Speed M Steptronic Gearbox ] |
| | |
| v |
| [ M xDrive AWD & M Differential ] |
+-------------------------------------------------------------------+
Powertrain System Specifications
-
Combustion Engine: 4.4-liter S68 V8 engine producing 489 HP and 650 Nm of torque in standard trim.
-
Electric Motor Unit: Permanent magnet synchronous motor adding 197 HP and 280 Nm of torque.
-
Combined System Output: Standard models yield 653 HP and 800 Nm of torque. The flagship Label Red variant produces 748 HP and 1,000 Nm.
-
Transmission & AWD: 8-speed M Steptronic transmission connected to an M xDrive all-wheel-drive system.
Technical Comparison: Current BMW XM Models vs. LCI Predictions
The table below contrasts key mechanical and hardware figures between current production models and expected LCI software updates.
| Hardware Parameter | Base BMW XM (G09) | BMW XM Label Red | Expected LCI Speculation |
| Engine Type | 4.4L Twin-Turbo V8 | 4.4L Twin-Turbo V8 | 4.4L Twin-Turbo V8 (Refined) |
| System Output | 653 HP / 800 Nm | 748 HP / 1,000 Nm | 750+ HP / 1,050 Nm |
| 0-100 km/h Acceleration | 4.3 Seconds | 3.8 Seconds | 3.7 Seconds |
| Usable Battery Capacity | 25.7 kWh | 25.7 kWh | 28.0 kWh (Optimized Density) |
| Electric Driving Range | 82 km – 88 km (WLTP) | 76 km – 83 km (WLTP) | 90+ km (WLTP) |
| AC Charging Speed | 7.4 kW AC | 7.4 kW AC | 11.0 kW AC (Upgraded On-Board) |
| Infotainment System | BMW iDrive 8.5 | BMW iDrive 8.5 | Neue Klasse Panoramic Vision |
Software, Ergonomics, and Next-Gen Cockpit Integration
An LCI update modeled after the Neue Klasse vision would focus heavily on interior digitalization. Physical buttons give way to advanced head-up projections and ultra-clear displays.
+-------------------------------------------------------------------+
| NEUE KLASSE PANORAMIC COCKPIT LAYOUT |
+-------------------------------------------------------------------+
| [================ BMW Panoramic Vision Display ================] |
| ( Projects essential speed, navigation, and power telemetry ) |
| |
| +-----------------------------------------------+ |
| | Center OLED Matrix Touchscreen Display | |
| +-----------------------------------------------+ |
| |
| ( Steering Wheel Switches ) [ Minimalist Selector ] |
+-------------------------------------------------------------------+
Interior Highlights
-
BMW Panoramic Vision: A full-width projection display spans the bottom of the windshield. It projects vehicle speed, battery state, and navigation prompts directly in the driver’s line of sight.
-
Central Matrix Touchscreen: A uniquely shaped central OLED screen handles climate, chassis modes, and media playback.
-
3D Head-Up Display: Augmented reality overlays project lane guidance and obstacle warnings directly onto the road.
-
M Lounge Rear Seating: Deep rear seating cushions feature sculpted ambient lighting elements woven into three-dimensional fabric covers.
⚠️ WARNING: High-performance hybrid vehicles require careful thermal management during fast charging. Rapid DC or AC charging while the battery is hot can trigger automatic charge-rate throttling to prevent cell degradation.
Chassis Control and Active Suspension Tuning
Handling a 2.7-ton vehicle requires complex chassis control systems. An LCI model would refine software management for the electronic chassis components.
SUSPENSION & CHASSIS CONTROL LOOP
+---------------------------------------------------------+
| Active 48V Anti-Roll Stabilization |
+---------------------------------------------------------+
|
v
+---------------------------------------------------------+
| Adaptive M Dampers & Steel Springs |
+---------------------------------------------------------+
|
v
+---------------------------------------------------------+
| Rear-Axle Steering & Torque Vectoring |
+---------------------------------------------------------+
Suspension Systems Breakdown
-
48-Volt Active Roll Stabilization: Electric anti-roll motors counter body lean in sharp corners. This keeps the chassis flat under hard lateral acceleration.
-
Active Rear-Axle Steering: The rear wheels turn up to 2.5 degrees. This reduces the turning circle in tight parking situations and improves stability during high-speed lane changes.
-
M Sport Rear Differential: An electronically controlled rear differential splits torque dynamically between the left and right rear wheels. This system prevents inner wheel spin when accelerating out of tight corners.
Market Positioning and Production Outlook
The BMW XM remains a niche halo model built for enthusiasts who desire maximum performance and unique styling. Adopting design elements from the Neue Klasse could smooth out its bold exterior features.
+-------------------------------------------------------------------+
| MODEL EVOLUTION TIMELINE |
+-------------------------------------------------------------------+
| [ 2022 ] --> Global Debut of the Production BMW XM (G09) |
| [ 2023 ] --> Launch of the High-Output XM Label Red Variant |
| [ 2026 ] --> Independent Neue Klasse LCI Design Concepts |
| [ 2027 ] --> Potential Official Factory LCI Life Cycle Update |
+-------------------------------------------------------------------+
This independent design rendering proves how versatile modern automotive architecture can be. By combining the bold stance of the XM with the clean surfaces of the Neue Klasse, the study previews a potential future direction for high-performance luxury SAVs.
